PackageRadial
Capacitance220uF
Voltage Rating315V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UVZ2F221MRD technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Height - Seated (Max)
1.969inch
Lead Free
Lead Free
Lead Pitch
0.394inch
Leakage Current
2.872mA
Length
50mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
50
Packaging
Bulk
Ripple Current
620mA
RoHS Compliant
Yes
Series
VZ
Termination
Radial
Tolerance
20%
Voltage Rating
315V
DC Rated Voltage
315V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVZ2F221MRD Datasheet
Download the complete datasheet for Nichicon UVZ2F221MRD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

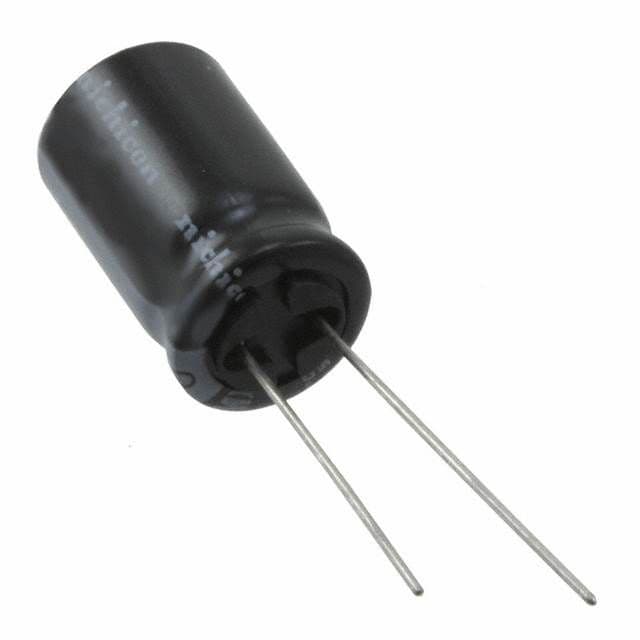

Product Images
