Aluminum electrolytic capacitor with 47µF capacitance and 400V DC rated voltage. Features 20% tolerance, 270mA ripple current, and a 1000-hour life at 105°C. This radial component has a 16mm diameter, 35.5mm height, and 7.5mm lead pitch, with a leakage current of 852µA. RoHS compliant and lead-free.
PackageRadial
Voltage400V
Capacitance47uF
Voltage Rating400V
Quick Jump:
Technical Specifications
Nichicon UVZ2G470MHD technical specifications.
General
| Capacitance | 47uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.25% |
| Height | 35.5mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 852uA |
| Length | 35.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 270mA |
| RoHS Compliant | Yes |
| Series | VZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVZ2G470MHD Datasheet
Download the complete datasheet for Nichicon UVZ2G470MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

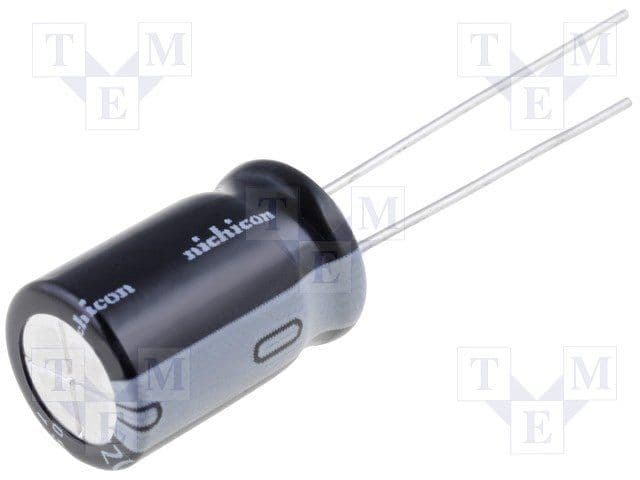

Product Images
