Aluminum electrolytic capacitor with 2.2µF capacitance and 350V DC voltage rating. Features 20% tolerance, 117µA leakage current, and 26mA ripple current. Radial package with 8mm diameter, 11.5mm height, and 3.5mm lead pitch. Rated for 1000 hours at 105°C, with a minimum operating temperature of -40°C. Through-hole mounting, lead-free, and RoHS compliant.
PackageRadial
Capacitance2.2uF
Voltage Rating350V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UVZ2V2R2MPD technical specifications.
General
| Capacitance | 2.2uF |
| Package/Case | Radial |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Height | 11.5mm |
| Height - Seated (Max) | 0.453inch |
| Lead Free | Lead Free |
| Lead Pitch | 3.5mm |
| Leakage Current | 117uA |
| Length | 11.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 26mA |
| RoHS Compliant | Yes |
| Series | UVZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVZ2V2R2MPD Datasheet
Download the complete datasheet for Nichicon UVZ2V2R2MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

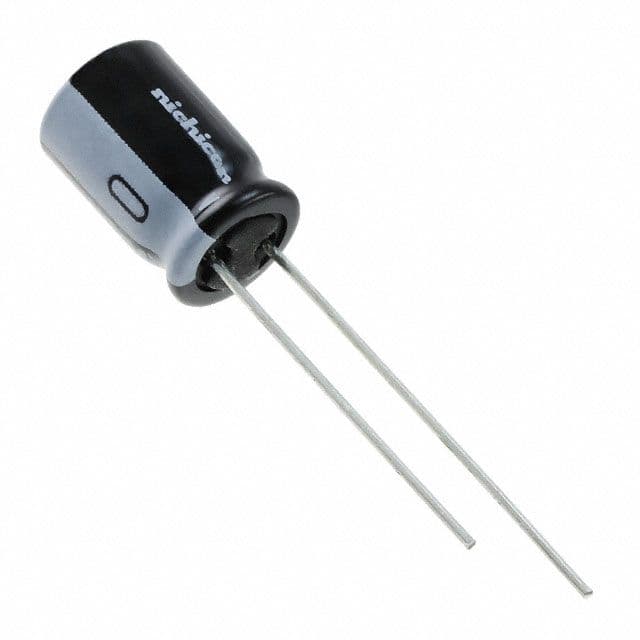

Product Images
