PackageRadial
Capacitance2.2uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UWJ1H2R2MCL1GB technical specifications.
General
Capacitance
2.2uF
Package/Case
Radial
Dissipation Factor
0.12%
Features
General Purpose
Height
5.4mm
Height - Seated (Max)
0.157inch
Leakage Current
63uA
Length
5.4mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Ripple Current
13mA
RoHS Compliant
Yes
Series
WJ
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UWJ1H2R2MCL1GB Datasheet
Download the complete datasheet for Nichicon UWJ1H2R2MCL1GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

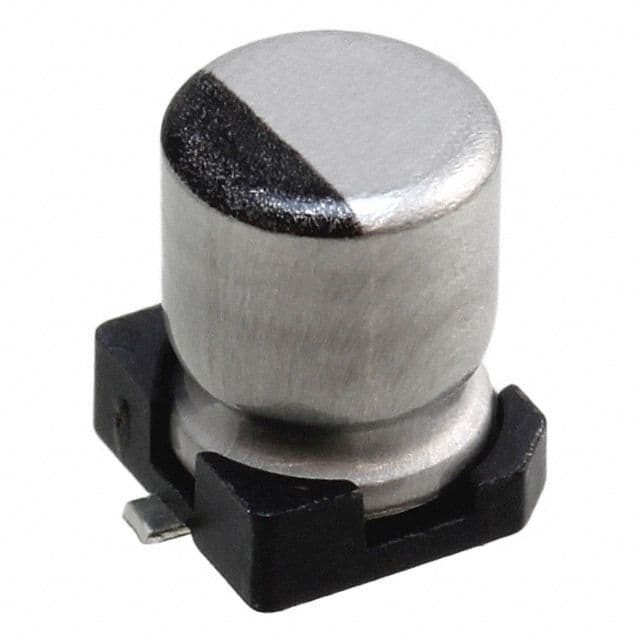

Product Images
