Technical Specifications
Nichicon UWT0G102MNL1GS technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.4% |
| Height | 8.3mm |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 10mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 230mA |
| RoHS Compliant | Yes |
| Series | UWT |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 4V |
| DC Rated Voltage | 4V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWT0G102MNL1GS Datasheet
Download the complete datasheet for Nichicon UWT0G102MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

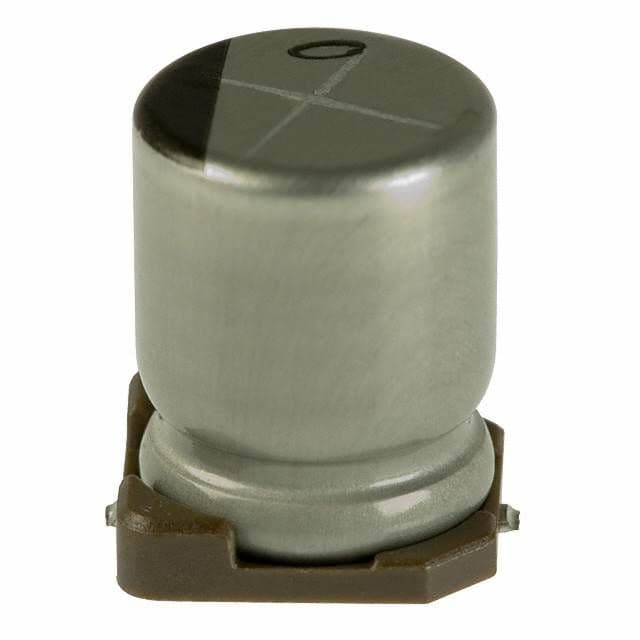

Product Images
