Technical Specifications
Nichicon UWX0J560MCL1GB technical specifications.
General
| Capacitance | 56uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 0.26% |
| Height | 5.4mm |
| Lead Free | Lead Free |
| Leakage Current | 3.528uA |
| Length | 5.4mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 52mA |
| RoHS Compliant | Yes |
| Series | UWX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWX0J560MCL1GB Datasheet
Download the complete datasheet for Nichicon UWX0J560MCL1GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

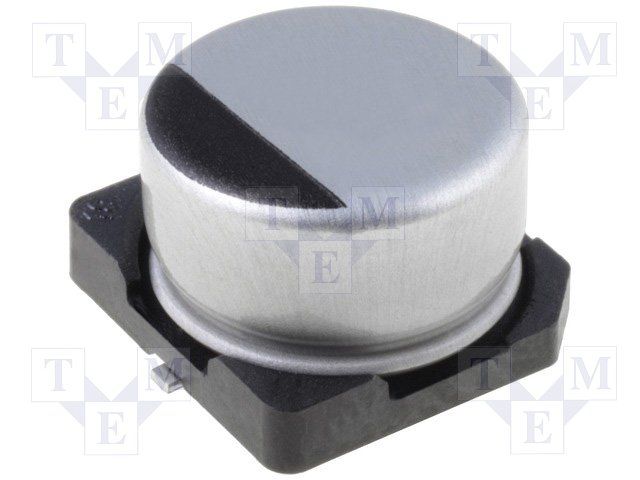

Product Images
