Technical Specifications
Nidec CHP-041TA technical specifications.
General
Actuator Type
PIANO
Body Material
Polyphenylene
Contact Material
Copper Alloy
Contact Plating
Gold
Electrical Life
1000Cycles
Height
4.6mm
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
24V
Mount
Surface Mount
Number of Positions
4
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
CHP
Termination
J-Hook
Throw Configuration
SPST
DC Rated Voltage
6V
Washable
No
Width
5.9mm
Compliance
RoHS
Compliant
Datasheet
Nidec CHP-041TA Datasheet
Download the complete datasheet for Nidec CHP-041TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

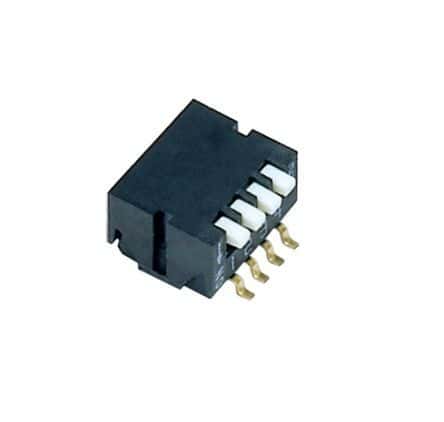

Product Images
