Technical Specifications
Nidec CS-4-12XTB technical specifications.
General
Actuator Type
Rotary
Body Material
Epoxy
Contact Material
Copper Alloy
Contact Plating
Gold
Current Rating
100mA
Electrical Life
200Cycles
Lead Free
Lead Free
Length
0.197inch
Max Current Rating
100mA
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
16V
Max Voltage Rating (DC)
16V
Mount
Surface Mount
Number of Positions
2
Orientation
Vertical
Packaging
Tape and Reel
Series
CS-4
Termination
Gull Wing
Throw Configuration
SPDT
DC Rated Voltage
16V
Washable
Yes
Compliance
RoHS
Compliant
Datasheet
Nidec CS-4-12XTB Datasheet
Download the complete datasheet for Nidec CS-4-12XTB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

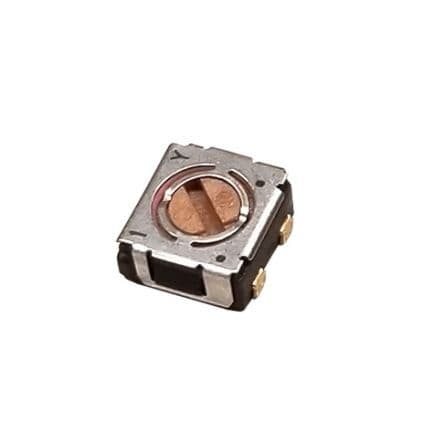

Product Images
