Nidec
CS-4-22YB
Rotary Switch, 2 Positions, Circular, Solder Terminal, Rotary Screw Actuator, Surface Mount-straight,
Voltage Rating16V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Nidec CS-4-22YB technical specifications.
General
Actuator Type
Rotary
Body Material
Epoxy
Contact Current Rating
100mA
Contact Material
Copper Alloy, Gold
Depth
5mm
Electrical Life
200Cycles
Height
2.3mm
Max Current Rating
100mA
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
16V
Mount
Surface Mount, PCB
Number of Contacts
2
Number of Positions
2
RoHS Compliant
Yes
Series
CS-4
Termination
Gull Wing
Throw Configuration
DPDT
Voltage Rating
16V
Washable
Yes
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Nidec CS-4-22YB Datasheet
Download the complete datasheet for Nidec CS-4-22YB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

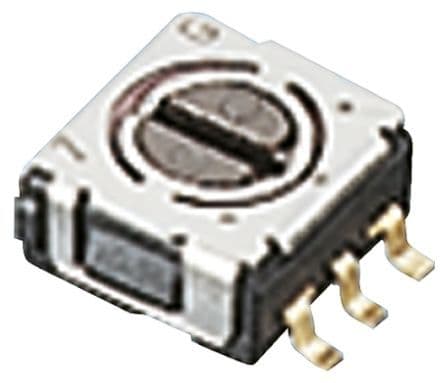

Product Images
