2-position SPST slide DIP switch with gold-plated stainless steel contacts and a polyphenylene body. Rated for 100mA at 6V DC, this surface-mount component features gull wing termination and a standard slide actuator. It offers an electrical life of 1000 cycles and operates within a temperature range of -40°C to 85°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Nidec CVS-02TB technical specifications.
General
Actuator Type
Slide (Standard)
Body Material
Polyphenylene
Contact Material
Stainless Steel
Contact Plating
Gold
Electrical Life
1000Cycles
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Positions
2
Packaging
Cut Tape
Series
CVS
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
6V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Nidec CVS-02TB Datasheet
Download the complete datasheet for Nidec CVS-02TB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

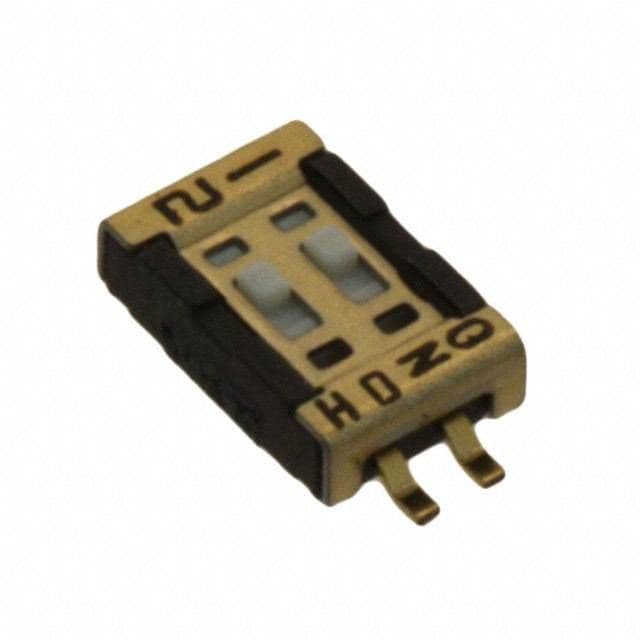

Product Images
