16-position rotary coded switch featuring binary coded hexadecimal and binary coded outputs. This through-hole, straight-mount component offers a 0.1A contact current rating at 5VDC, with gold-plated copper alloy contacts. Designed for vertical orientation with a rotary screw actuator, it operates within a -40°C to 85°C temperature range and is RoHS compliant and washable.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Nidec S-1010A technical specifications.
General
Actuator Type
Rotary
Body Material
PBT, Polybutylene
Contact Current Rating
100mA
Contact Material
Copper Alloy, Gold
Contact Plating
Gold
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Number of Positions
16
Orientation
Vertical
Packaging
Bulk
RoHS Compliant
Yes
Series
S-1000A
Termination
PC Pin
DC Rated Voltage
5V
Washable
Yes
Compliance
RoHS
Compliant
Datasheet
Nidec S-1010A Datasheet
Download the complete datasheet for Nidec S-1010A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

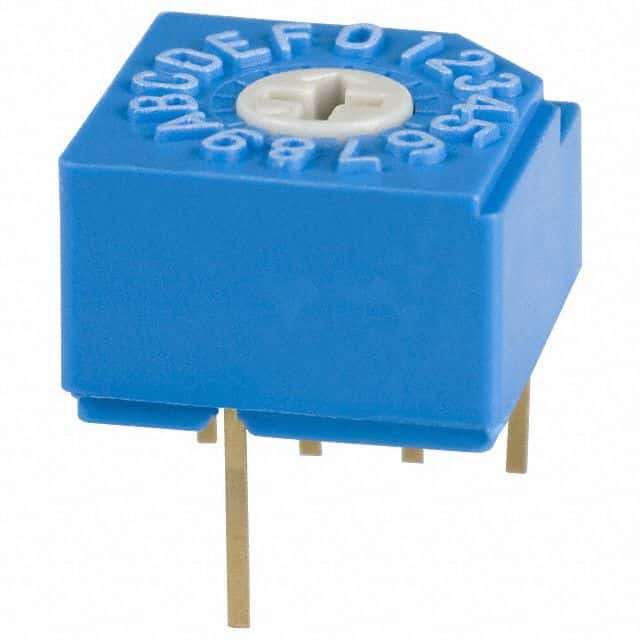

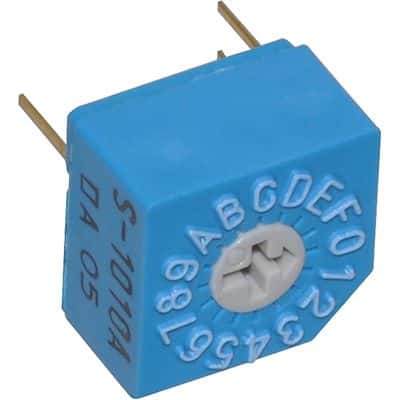

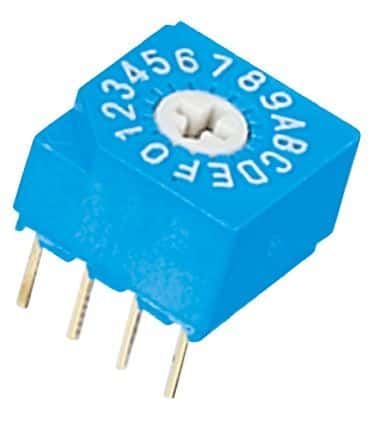

Product Images
