Nidec
ST4ETB203
ST4 Series Variable Resistor, 20kR, 20% Tolerance, 250mW Max Power Dissipation, Surface Mount
The ST4 Series Variable Resistor is a surface mount component with a maximum power dissipation of 250mW. It has a resistance of 20kR and a tolerance of 20%. The resistor is packaged in cut tape and features a gull wing termination. The ST4 Series Variable Resistor is suitable for use in a variety of applications.
Resistance20kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Nidec ST4ETB203 technical specifications.
General
| Color | Black |
| Height | 0.091inch |
| Lead Free | Lead Free |
| Length | 0.197inch |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Turns | 1 |
| Packaging | Cut Tape |
| Resistance | 20kR |
| Resistor Type | Cermet |
| Series | ST4 |
| Termination | Gull Wing |
| Tolerance | 20% |
| Weight | 120mg |
| Width | 0.177inch |
Compliance
| RoHS | Compliant |
Datasheet
Nidec ST4ETB203 Datasheet
Download the complete datasheet for Nidec ST4ETB203 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

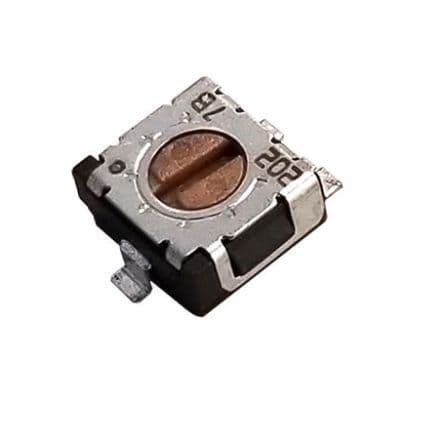

Product Images
