NKK Switches
A12J2B1
Switch Toggle ON None ON SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches A12J2B1 technical specifications.
General
| Actuator Length | 6.3mm |
| Actuator Material | Nylon, Glass, Polyamide |
| Actuator Type | Standard Round |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Electrical Life | 50000Cycles |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Series | A |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Not Compliant |
Datasheet
NKK Switches A12J2B1 Datasheet
Download the complete datasheet for NKK Switches A12J2B1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

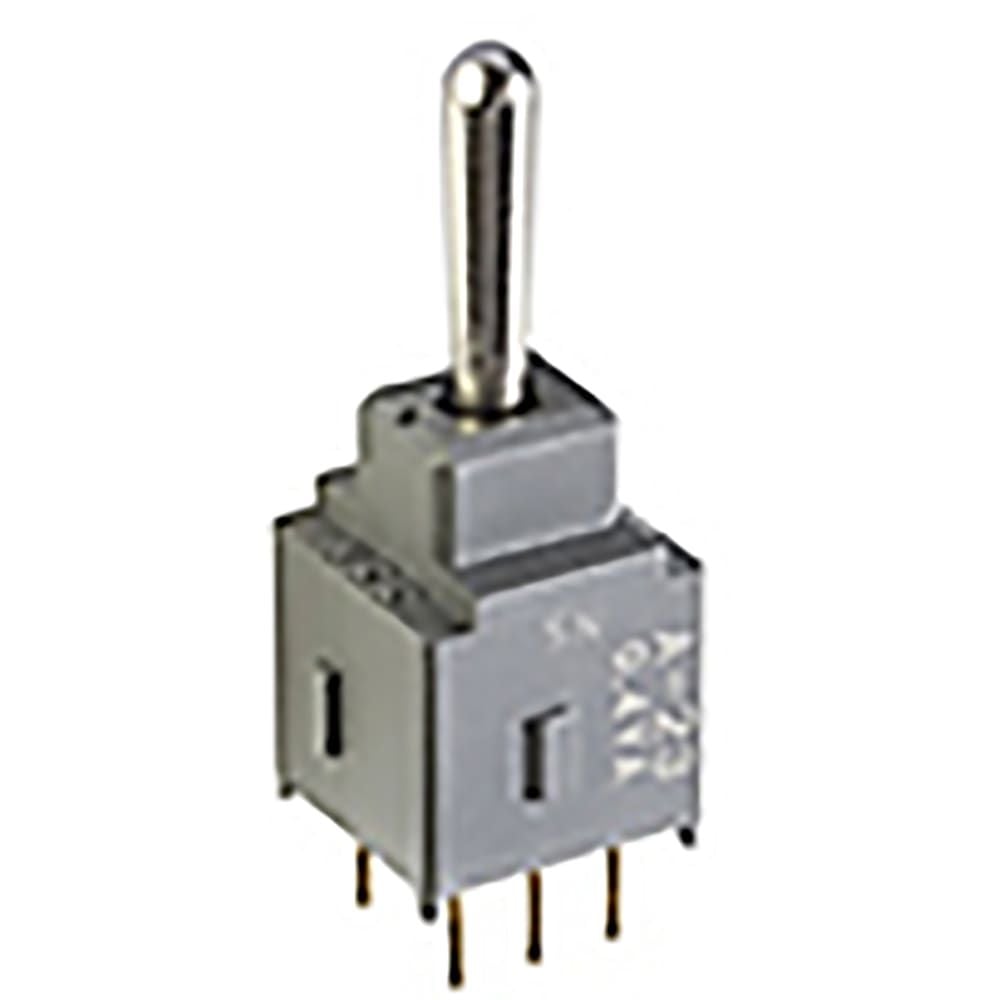

Product Images
