NKK Switches
A19AH
Switch Toggle ON OFF (ON) SPDT Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches A19AH technical specifications.
General
Actuator Length
10mm
Actuator Material
Brass
Actuator Type
Standard Round
Contact Material
Brass, Bronze
Contact Plating
Gold
Current Rating
100mA
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated, Illuminated
Lead Pitch
2.54mm
Life (Hours)
50000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Through Hole
Number of Poles
1
Package Quantity
1
Reach SVHC Compliant
No
Series
A
Switch Function
On-Off-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Width
9.8mm
Compliance
RoHS
Not Compliant
Datasheet
NKK Switches A19AH Datasheet
Download the complete datasheet for NKK Switches A19AH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

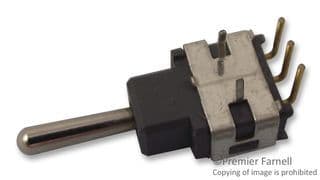

Product Images
