NKK Switches
AB25AP-HC
Switch Push Button ON (ON) DPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches AB25AP-HC technical specifications.
General
Actuator Type
Round, Button
Contact Plating
Gold
Electrical Life
50000Cycles
Max Operating Temperature
85°C
Mechanical Life
50000Cycles
Min Operating Temperature
-30°C
Mount
Through Hole
Package Quantity
1
Packaging
Tray
RoHS Compliant
Yes
Series
AB
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches AB25AP-HC Datasheet
Download the complete datasheet for NKK Switches AB25AP-HC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

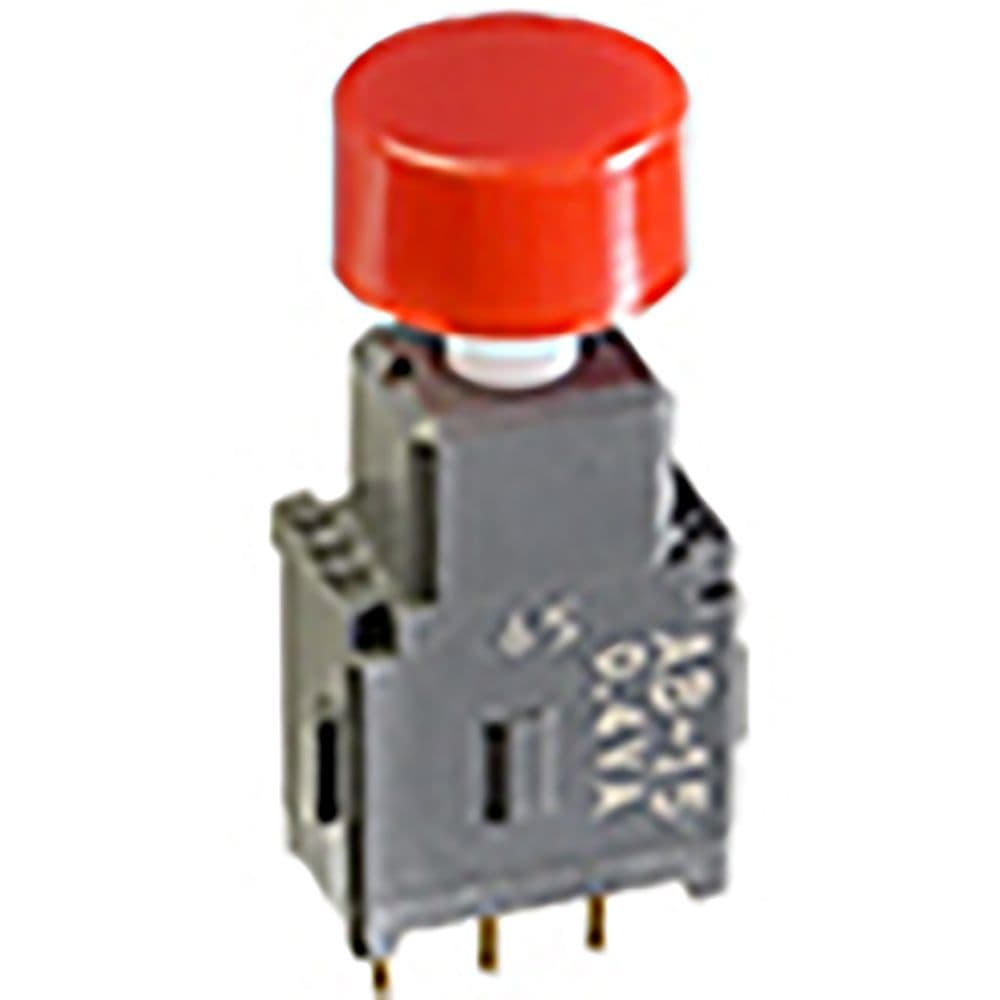

Product Images
