SPST slide switch featuring a 2.5mm switch travel and 260gf operating force. Non-illuminated with a 3.8mm nylon actuator and gold-plated bronze contacts, this through-hole mount component offers a 400mA current rating and 28V AC/DC voltage rating. Designed for 50,000 electrical and mechanical cycles, it operates within a -30°C to 85°C temperature range.
Current Rating400mA
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches AS11CP technical specifications.
General
Actuator Length
3.8mm
Actuator Material
Nylon, Glass, Polyamide, Glass fibre
Actuator Type
Standard
Contact Material
Bronze, Brass, Gold
Contact Plating
Gold
Current Rating
400mA
Depth
5.38mm
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
9.8mm
Max Current Rating
100mA
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
28V
Max Voltage Rating (DC)
28V
Mechanical Life
50000Cycles
Mount
Through Hole
Operating Force
260gf
Orientation
Vertical
Package Quantity
1
Packaging
Tray
Primary Type
SWITCH
Reach SVHC Compliant
Unknown
Series
AS
Switch Function
On-Off
Switch Travel
2.5mm
Termination
PC Pins
Throw Configuration
SPST
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches AS11CP Datasheet
Download the complete datasheet for NKK Switches AS11CP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

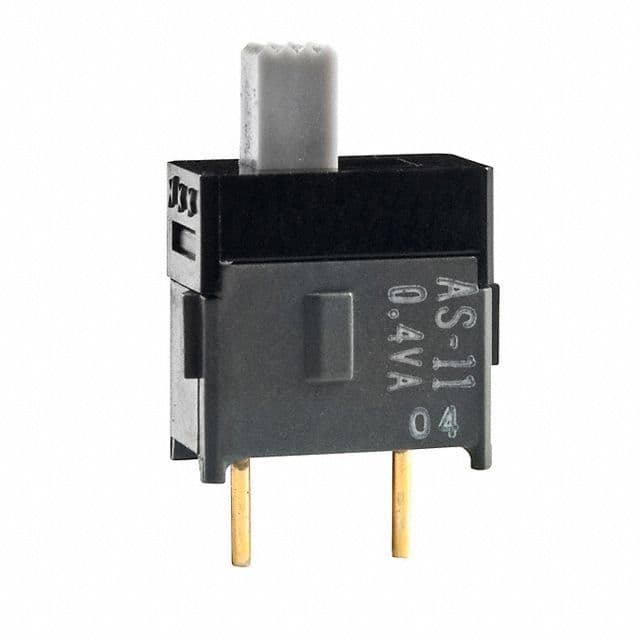

Product Images
