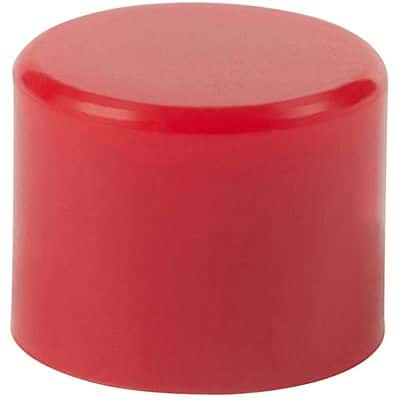

The AT475C is a red polyamide pushbutton switch with a 4mm diameter and panel mount. It has a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. The switch is lead free and compliant with certain requirements, but not Reach SVHC compliant. It has a round shape and a width of 5.1mm, with a height of 4mm and a diameter of 5.11mm.
Package201
Storage4mm
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches AT475C technical specifications.
General
| Package/Case | 201 |
| Color | Red |
| Contact Material | Polyamide |
| Diameter | 5.11mm |
| Height | 4mm |
| Illumination Type | Non-Illuminated |
| Lead Free | Lead Free |
| Material | Polyamide |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Panel |
| Reach SVHC Compliant | No |
| Shape | Round |
| Size | 4mm |
| Switch Type | Pushbutton |
| Termination | SNAP |
| Width | 5.1mm |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches AT475C Datasheet
Download the complete datasheet for NKK Switches AT475C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
