NKK Switches
B12JJVF
Switch Toggle ON None ON SPDT Lighted Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
Current Rating100mA
MountingThrough Hole, Vertical
Quick Jump:
Technical Specifications
NKK Switches B12JJVF technical specifications.
General
| Actuator Length | 6.3mm |
| Actuator Material | Nylon, Polyamide |
| Actuator Type | Standard Round |
| Color | Green |
| Contact Material | Gold |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Electrical Life | 50000Cycles |
| Illumination Color | Green |
| Illumination Type | Illuminated, LED |
| Life (Hours) | 50000Hour |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole, Vertical |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | B |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches B12JJVF Datasheet
Download the complete datasheet for NKK Switches B12JJVF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

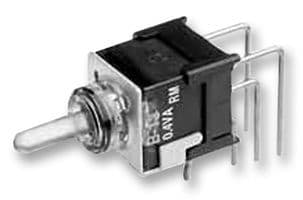

Product Images
