This is a 28V through hole on-on SPDT pushbutton switch with a gold contact plating and a maximum operating temperature of 85°C. It has a minimum operating temperature of -30°C and a mechanical life of 25000 cycles. The switch is RoHS compliant and has a flammability rating of UL94 V-0. It has an electrical life of 25000 cycles and is available in a single package quantity.
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches BB16AP-HC technical specifications.
General
| Actuator Type | Round, Button |
| Contact Plating | Gold |
| Electrical Life | 25000Cycles |
| Flammability Rating | UL94 V-0 |
| Max Operating Temperature | 85°C |
| Mechanical Life | 25000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | BB |
| Switch Function | On-On |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches BB16AP-HC Datasheet
Download the complete datasheet for NKK Switches BB16AP-HC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

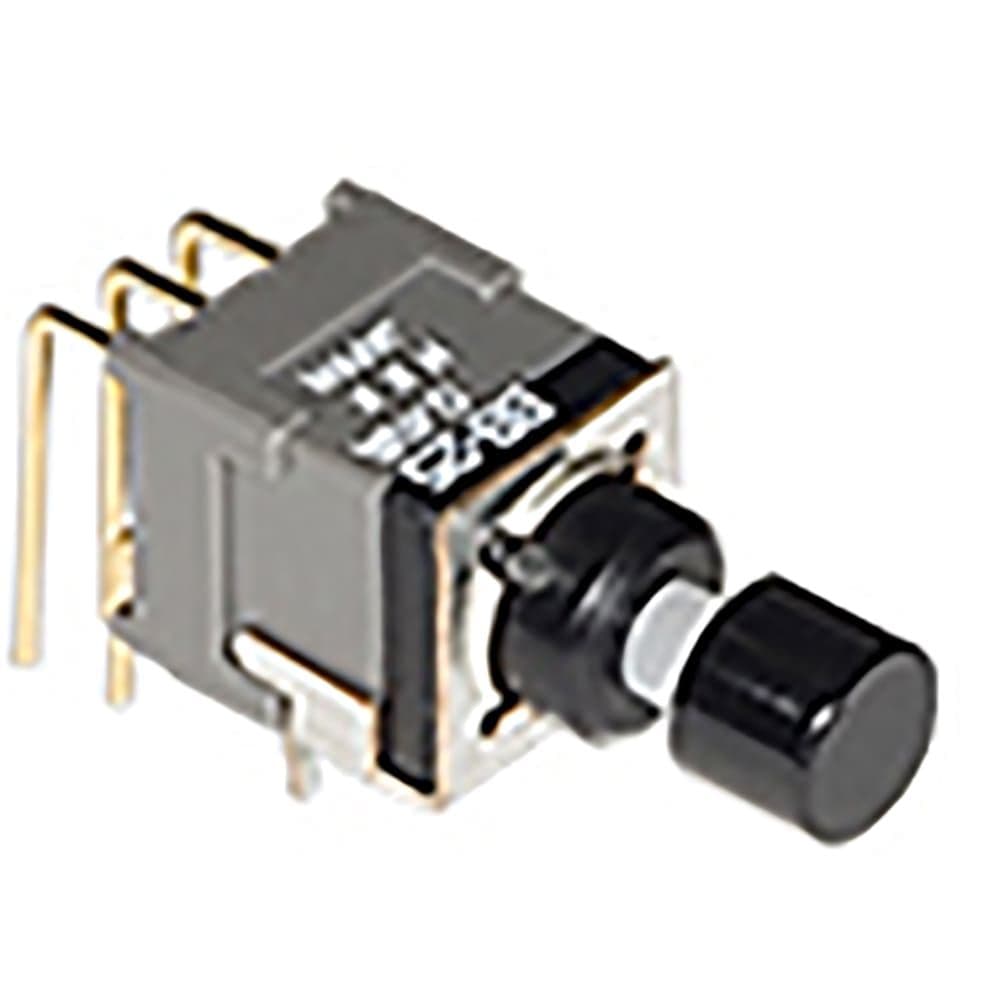

Product Images
