SPDT illuminated pushbutton switch with alternate action, featuring PC pin termination for through-hole mounting. Rated for 0.1A at 28VAC/28VDC, with a 0.4VA contact rating. Offers 25,000 electrical and mechanical life cycles. Constructed with a polyacetal round button actuator and gold-plated bronze contacts. Operates within a temperature range of -30°C to 85°C.
MountingThrough Hole, Vertical
Quick Jump:
Technical Specifications
NKK Switches BB16AV-FA technical specifications.
General
| Actuator Material | Polyacetal |
| Actuator Type | Round, Button |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 25.5mm |
| Electrical Life | 25000Cycles |
| Lead Free | Lead Free |
| Length | 8mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 28V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 25000Cycles |
| Mount | Through Hole, Vertical |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | BB |
| Switch Function | On-On |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 28V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches BB16AV-FA Datasheet
Download the complete datasheet for NKK Switches BB16AV-FA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

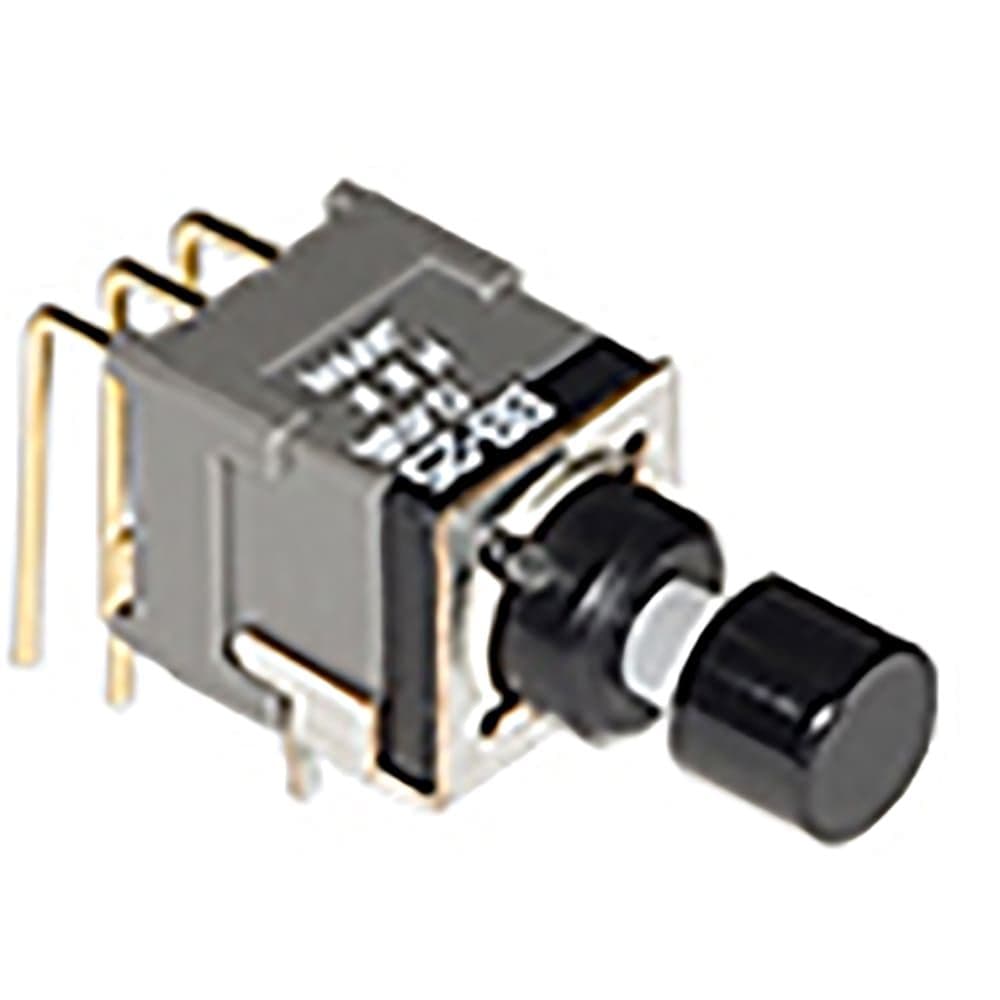

Product Images
