2-position SPDT keylock switch with maintained and momentary action. Features a 3A contact current rating with silver-plated silver and copper contacts. Offers a 90° index angle and solder lug termination for panel mounting. Rated for 250V AC, with an electrical life of 10,000 cycles and a mechanical life of 30,000 cycles. Operates within a temperature range of -25°C to 70°C.
Current Rating3A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches CKL12ATW01 technical specifications.
General
Contact Current Rating
3A
Contact Material
Silver, Copper
Contact Plating
Silver
Current Rating
3A
Depth
22mm
Diameter
22mm
Electrical Life
10000Cycles
Index Angle
90°
Lead Free
Lead Free
Length
22mm
Material
Brass
Max Current Rating
3A
Max Operating Temperature
70°C
Mechanical Life
30000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel
Number of Poles
1
Number of Positions
2
Orientation
Vertical
Package Quantity
1
Primary Type
SWITCH
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
CK
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
NKK Switches CKL12ATW01 Datasheet
Download the complete datasheet for NKK Switches CKL12ATW01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

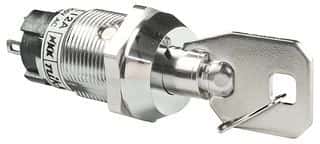

Product Images
