Technical Specifications

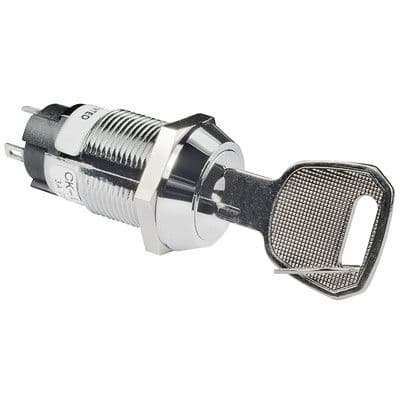

NKK Switches CKL12BFW01-008 technical specifications.
General
Contact Material
Silver
Contact Plating
Silver
Current Rating
3A
Electrical Life
10000Cycles
Height
29.1mm
Index Angle
90°
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
30000Cycles
Min Operating Temperature
-25°C
Mount
Panel
Number of Positions
2
Orientation
Vertical
Package Quantity
1
Series
CK
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
NKK Switches CKL12BFW01-008 Datasheet
Download the complete datasheet for NKK Switches CKL12BFW01-008 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
