Technical Specifications
NKK Switches CKL12BTW01-013 technical specifications.
General
Contact Material
Silver
Contact Plating
Silver
Current Rating
3A
Depth
22mm
Electrical Life
10000Cycles
Index Angle
90°
Lead Free
Lead Free
Length
22mm
Max Current Rating
3A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mechanical Life
30000Cycles
Mount
Panel
Number of Positions
2
Orientation
Vertical
Package Quantity
1
Series
CK
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
NKK Switches CKL12BTW01-013 Datasheet
Download the complete datasheet for NKK Switches CKL12BTW01-013 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

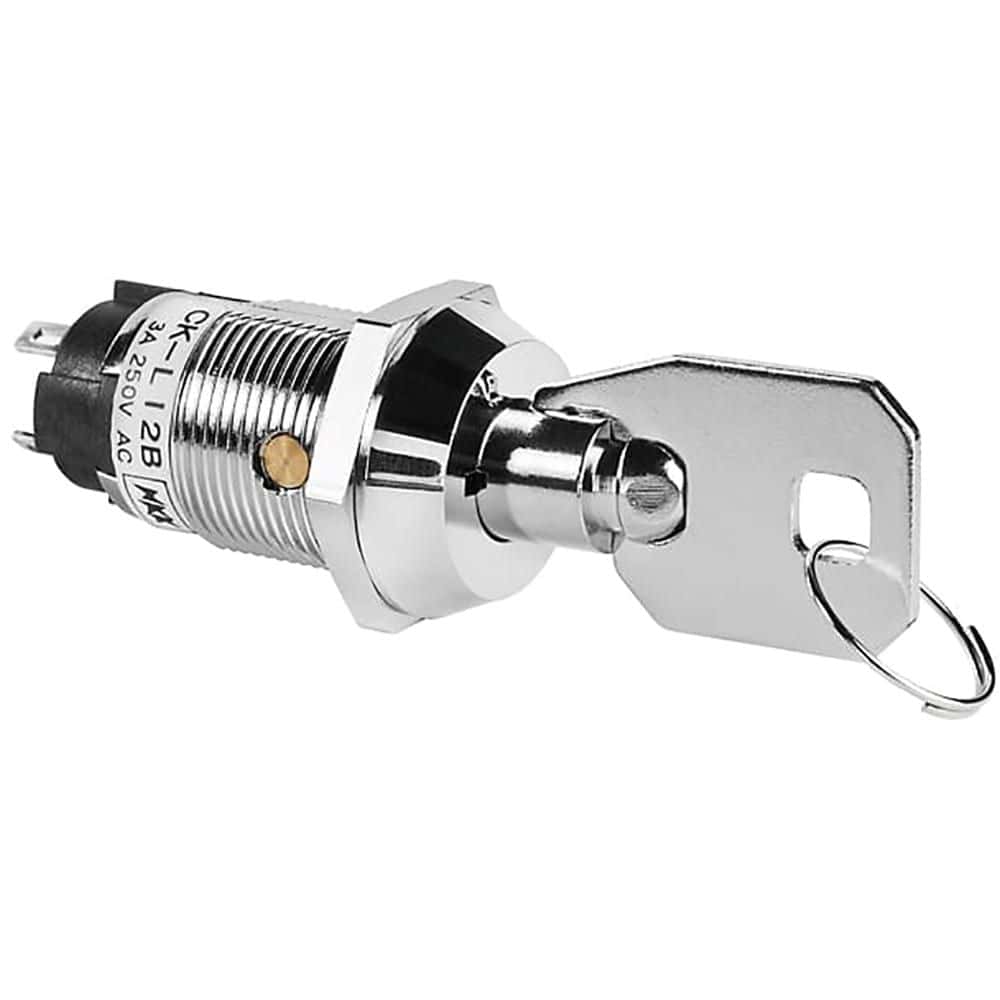

Product Images
