NKK Switches
CKL12BTW01-021
CK-Series High Security Keylock; Poles: SPDT; no positions: 2; Circuits: On-On; contact timing: Non-Shorting (BBM); Current Rating: 3A (AC); Rating (AC): 250V; Actuator Type: Tubular Key; key removable positions: 1 only; angle throw: 90?; contact material: Silver (Ag); contact finish: Silver; Mounting Type: Panel Mount; Termination Style: Solder Lug; panel cutout dimensions: Circular - 19.00mm Dia; Features: Epoxy Sealed Terminals; Rating: 3
Current Rating3A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches CKL12BTW01-021 technical specifications.
General
Contact Material
Silver
Contact Plating
Silver
Current Rating
3A
Depth
22mm
Electrical Life
10000Cycles
Index Angle
90°
Lead Free
Lead Free
Length
22mm
Max Current Rating
3A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mechanical Life
30000Cycles
Mount
Panel
Number of Positions
2
Orientation
Vertical
Package Quantity
1
RoHS Compliant
Yes
Series
CK
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
NKK Switches CKL12BTW01-021 Datasheet
Download the complete datasheet for NKK Switches CKL12BTW01-021 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

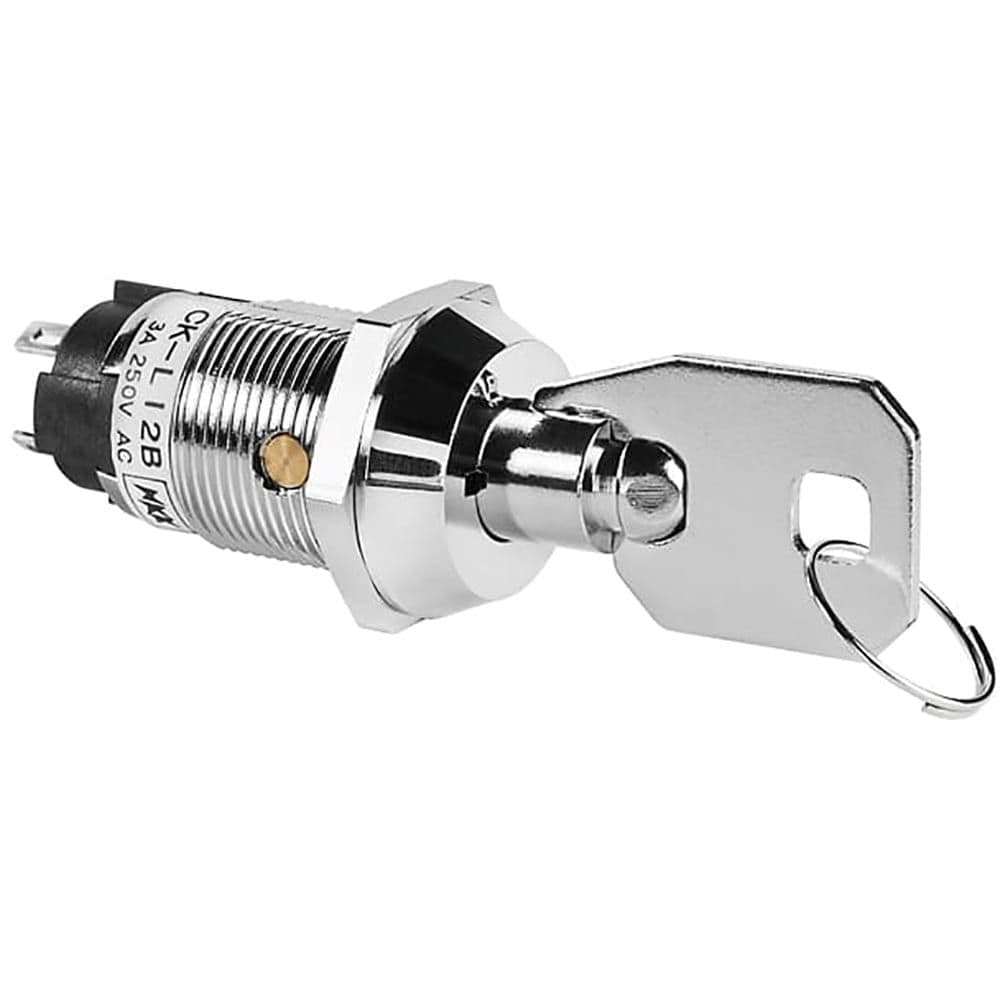

Product Images
