NKK SWITCHES

CKM12BFW01-001

Datasheet

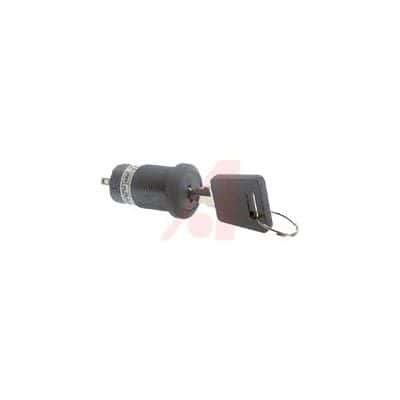

SPDT Keylock Switch, 3A 250VAC, On-On, Silver, Panel Mount

NKK Switches

CKM12BFW01-001

Name: CKM12BFW01-001 NKK Switches
Brand: NKK Switches
SKU: CKM12BFW01-001

SPDT Keylock Switch, 3A 250VAC, On-On, Silver, Panel Mount

SPDT Keylock Switch, 2-position maintained, On-On circuit with non-shorting (BBM) contact timing. Features a 3A AC current rating at 250V AC, silver contacts with silver plating, and a flat key actuator with one key removable position. Panel mount design with 16mm circular cutout and solder lug terminations. Epoxy sealed terminals ensure durability, with a mechanical life of 30,000 cycles and electrical life of 10,000 cycles.

Current Rating3A

MountingPanel

Quick Jump:

Technical Specifications

NKK Switches CKM12BFW01-001 technical specifications.

General

Contact Material	Silver
Contact Plating	Silver
Current Rating	3A
Depth	19mm
Electrical Life	10000Cycles
Index Angle	90°
Lead Free	Lead Free
Length	19mm
Max Current Rating	3A
Max Operating Temperature	70°C
Min Operating Temperature	-25°C
Max Voltage Rating (AC)	250V
Mechanical Life	30000Cycles
Mount	Panel
Number of Positions	2
Orientation	Vertical
Package Quantity	25
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	CK
Switch Function	On-On
Termination	Solder
Throw Configuration	SPDT
Voltage Rating (AC)	250V
