NKK Switches
FP0115CAC1FF

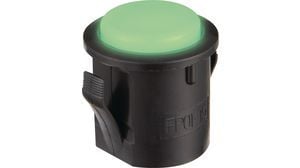

Switch Push Button (ON) OFF SPST Round Button Momentary Contact Panel Mount Connector
Current Rating20mA
MountingPanel, Snap in
Quick Jump:
Technical Specifications
NKK Switches FP0115CAC1FF technical specifications.
General
| Actuator Type | Round, Button |
| Contact Current Rating | 20mA |
| Current Rating | 20mA |
| Illumination Color | Green |
| Illumination Type | LED |
| Lead Free | Contains Lead |
| Max Operating Temperature | 50°C |
| Mechanical Life | 3000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Panel, Snap in |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FP01 |
| Switch Function | On-Off |
| Termination | Solder |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches FP0115CAC1FF Datasheet
Download the complete datasheet for NKK Switches FP0115CAC1FF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
