NKK Switches
FR01AR10PB-S
Rotary Switch, 10 Positions, Circular, 0.1A, 5VDC, 9 PCB Hole Cnt, Solder Terminal, Rotary Shaft Actuator, Through Hole-straight,
Current Rating100mA
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches FR01AR10PB-S technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Nylon, Glass, Polyamide |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Length | 0.516inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Number of Poles | 1 |
| Number of Positions | 10 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FR01 |
| Termination | PC Pin |
| DC Rated Voltage | 5V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches FR01AR10PB-S Datasheet
Download the complete datasheet for NKK Switches FR01AR10PB-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

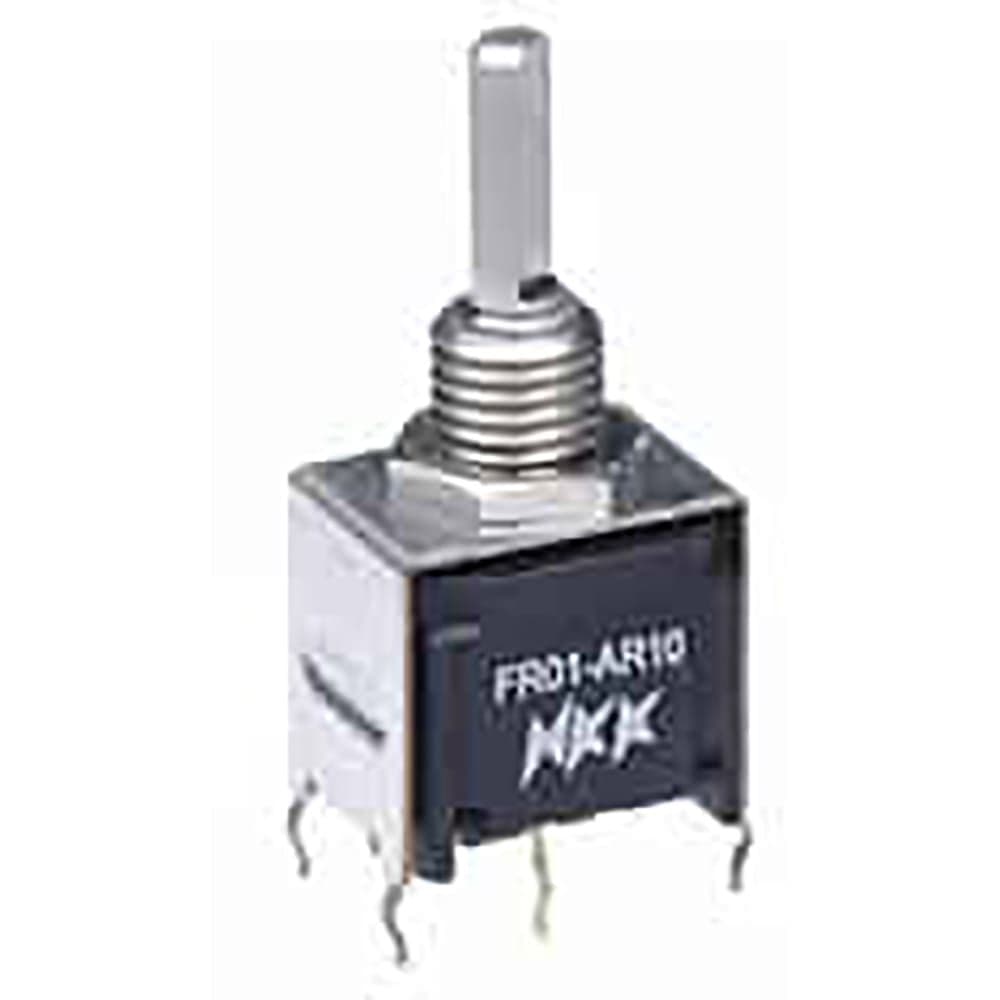

Product Images
