Technical Specifications
NKK Switches FR01AR10PB-W-S technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Nylon, Glass, Polyamide |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Illumination Type | Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Number of Poles | 1 |
| Number of Positions | 10 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Series | FR01 |
| Termination | PC Pin |
| DC Rated Voltage | 5V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches FR01AR10PB-W-S Datasheet
Download the complete datasheet for NKK Switches FR01AR10PB-W-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

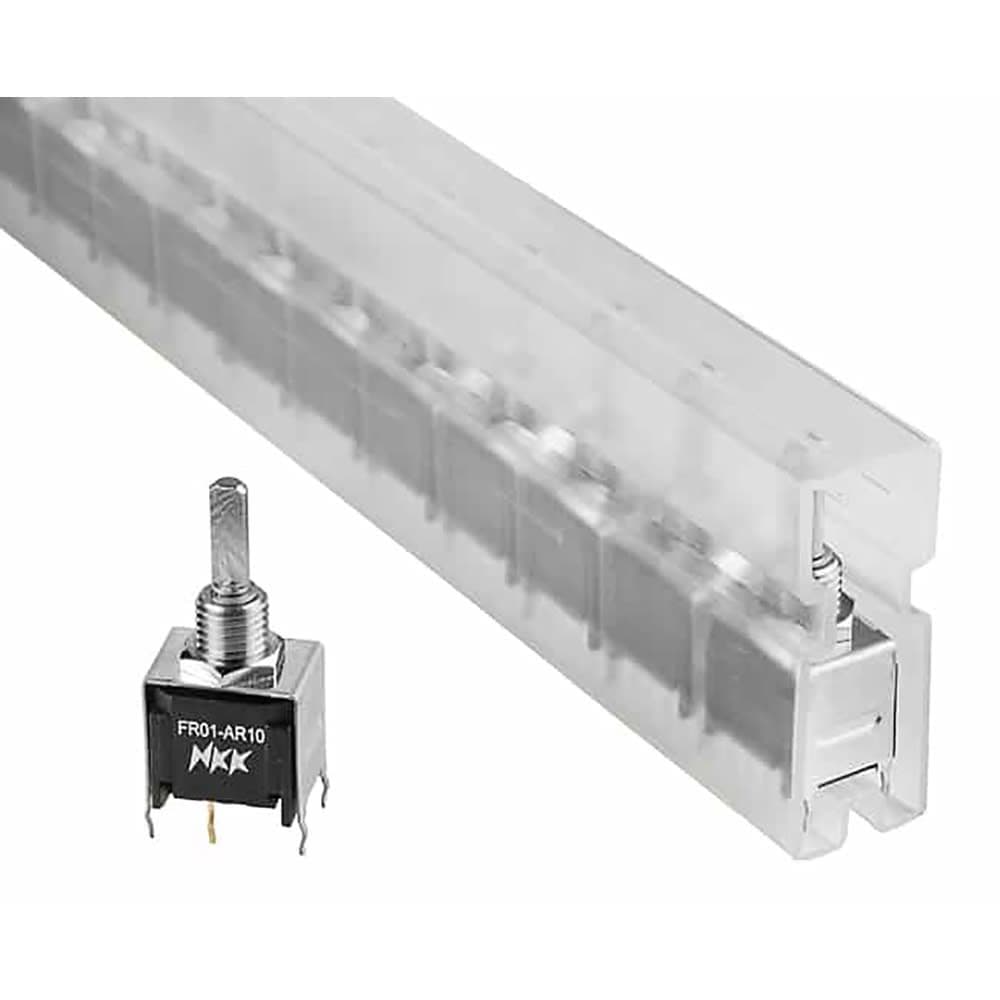

Product Images
