This 16-position rotary DIP switch features a nylon, glass, and polyamide body with copper alloy contacts plated with gold. It has a current rating of 100mA and a DC rated voltage of 5V. The switch is designed for through-hole mounting and has a maximum operating temperature of 85°C and a minimum operating temperature of -25°C. The switch is lead-free and available in a bulk packaging option.
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches FR01FC16H-06XL technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Nylon, Glass, Polyamide |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Lead Free | Lead Free |
| Length | 0.393inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Positions | 16 |
| Number of Switches | 16 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 0.1inch |
| Series | FR01 |
| Termination | PC Pin |
| DC Rated Voltage | 5V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches FR01FC16H-06XL Datasheet
Download the complete datasheet for NKK Switches FR01FC16H-06XL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

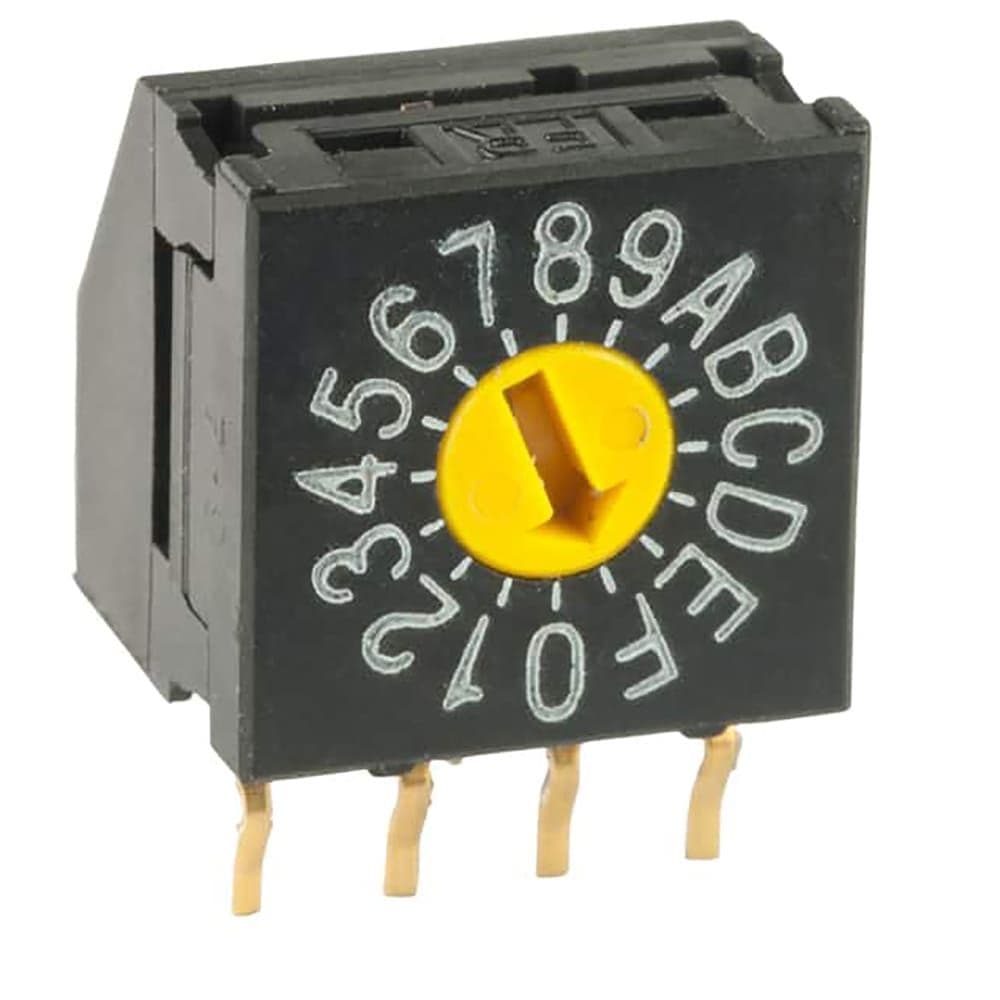

Product Images
