Illuminated rotary coded switch featuring a 10-position, SP10T throw configuration. Surface mountable with gull wing termination, this switch offers a 100mA current rating at 5V DC. Constructed with nylon, glass, and polyamide body materials and copper alloy contacts with gold plating, it operates within a -25°C to 85°C temperature range.
Current Rating100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches FR02FR10P-R technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Nylon, Glass, Polyamide |
| Contact Material | Copper Alloy, Gold |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Depth | 13mm |
| Illumination Type | Illuminated |
| Lead Free | Lead Free |
| Lead/Base Style | Gull Wing |
| Length | 10mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Poles | 1 |
| Number of Positions | 10 |
| Number of Switches | 10 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Pitch | 0.1inch |
| Primary Type | SWITCH |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FR02 |
| Termination | Gull Wing |
| Throw Configuration | SP10T |
| DC Rated Voltage | 5V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches FR02FR10P-R Datasheet
Download the complete datasheet for NKK Switches FR02FR10P-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

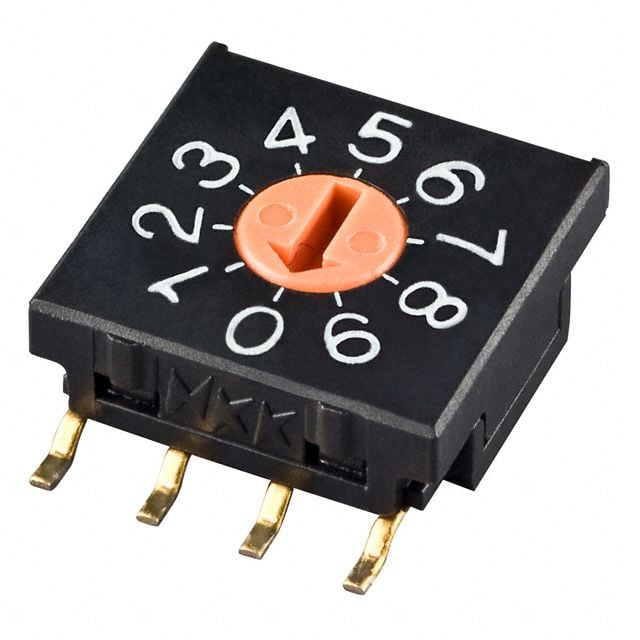

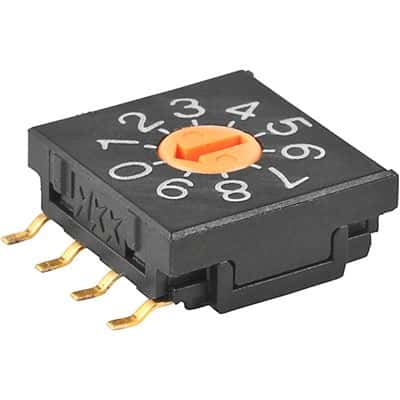

Product Images
