NKK Switches

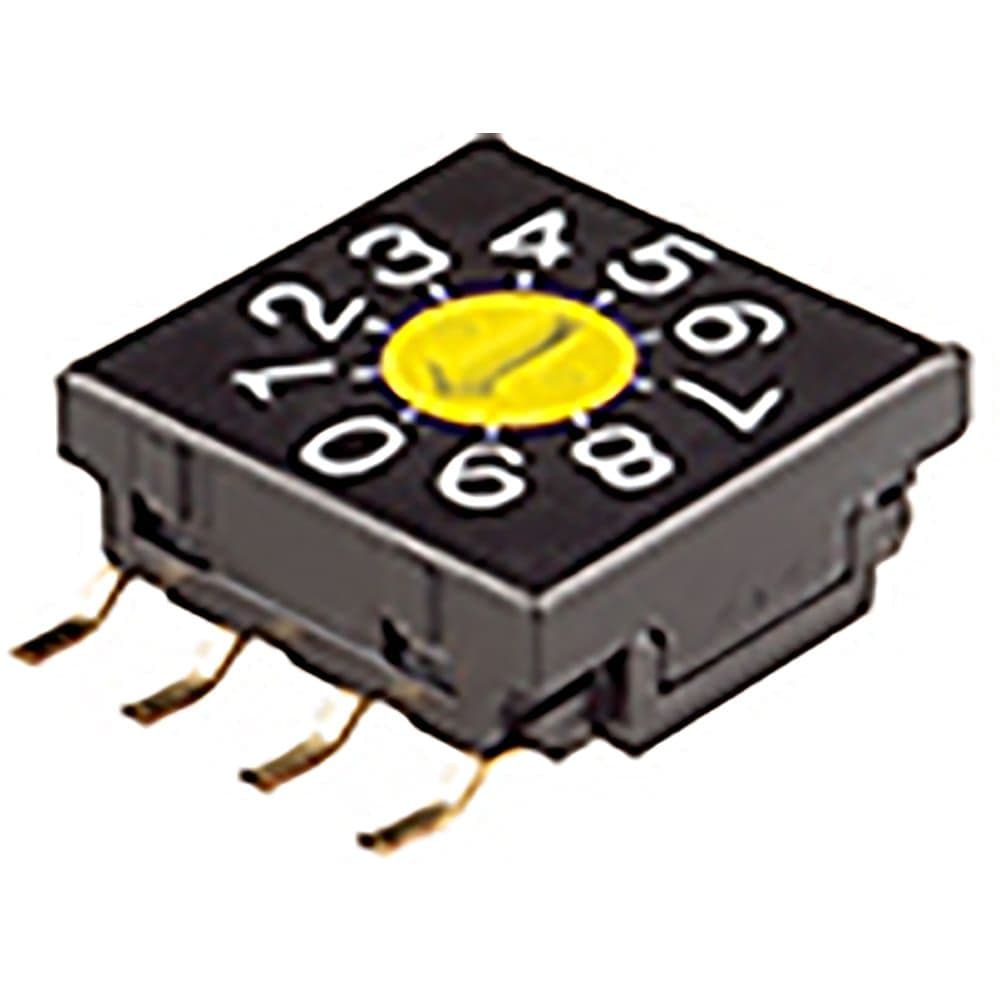

FR02KR10P-S
Switch DIP N.O./N.C. SP10T 10 Extended Shaft 0.1A 5VDC Gull Wing 10000Cycles SMD Tube
Current Rating100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches FR02KR10P-S technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Nylon, Glass, Polyamide |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Lead/Base Style | Gull Wing |
| Length | 0.393inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Positions | 10 |
| Number of Switches | 10 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| RoHS Compliant | Yes |
| Series | FR02 |
| Termination | SMD/SMT |
| DC Rated Voltage | 5V |
| Washable | No |
Compliance
| RoHS | Compliant |
