Technical Specifications

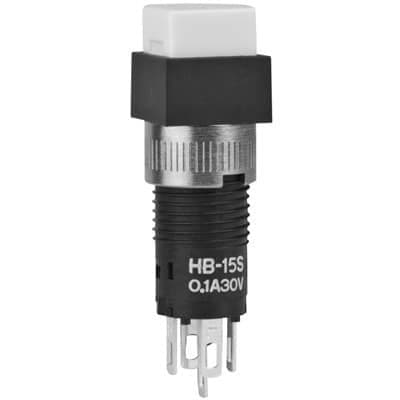

NKK Switches HB15SKW01-B technical specifications.
General
Actuator Type
Square, Button
Contact Material
Bronze
Contact Plating
Silver
Depth
9mm
Electrical Life
50000Cycles
Length
9mm
Max Current Rating
100mA
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
30V
Max Voltage Rating (DC)
30V
Mechanical Life
100000Cycles
Mount
Panel, Front
Packaging
Box
RoHS Compliant
Yes
Series
HB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
30V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches HB15SKW01-B Datasheet
Download the complete datasheet for NKK Switches HB15SKW01-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
