Technical Specifications

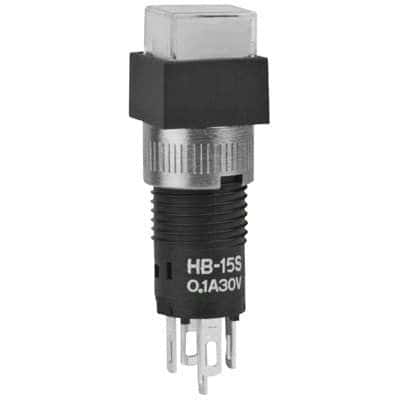

NKK Switches HB15SKW01-JB technical specifications.
General
Actuator Type
Square, Button
Contact Plating
Silver
Electrical Life
50000Cycles
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Packaging
Box
RoHS Compliant
No
Series
HB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
30V
DC Rated Voltage
30V
Compliance
RoHS
Not Compliant
Datasheet
NKK Switches HB15SKW01-JB Datasheet
Download the complete datasheet for NKK Switches HB15SKW01-JB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
