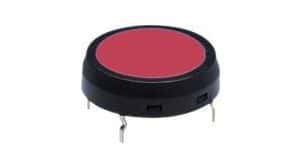

Ultra-thin, process-sealed tactile switch featuring SPST-NO circuitry and Off-Mom function. Rated for 0.05A at 24VDC with a 3N operating force and 0.4mm travel. This through-hole mounted switch has a 5.08mm actuator height and a 17.7mm diameter outline. Constructed with a red nylon actuator and silver-plated bronze/brass contacts, it offers a mechanical life of 500,000 cycles and operates between -25°C and 85°C.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches JF15CP2C technical specifications.
General
Actuator Color
Red
Actuator Material
Nylon, Polyamide
Contact Current Rating
50mA
Contact Material
Bronze, Brass, Silver
Contact Plating
Silver
Contact Type
1 maker
Current Rating
50mA
Depth
17.7mm
Height
8.68mm
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
17.7mm
Max Current Rating
50mA
Max Operating Temperature
85°C
Mechanical Life
500000Cycles
Min Operating Temperature
-25°C
Mount
Through Hole
Number of Poles
1
Number of Positions
2
Operating Force
3N
Orientation
Straight
Package Quantity
1
Packaging
Tray
Primary Type
SWITCH
RoHS Compliant
Yes
Series
JF
Switch Function
Off-Mom
Switch Travel
0.4mm
Termination
Solder
Throw Configuration
SPST
DC Rated Voltage
24V
Width
17.7mm
Compliance
RoHS
Compliant
Datasheet
NKK Switches JF15CP2C Datasheet
Download the complete datasheet for NKK Switches JF15CP2C to view detailed technical specifications.
