NKK Switches
JPM26B-B
Switch Push Button ON OFF DPST Rectangular Button 10A 250VAC Alternate Contact Solder Lug Panel Mount
Package125
Current Rating10A
MountingSnap in, Panel
Quick Jump:
Technical Specifications
NKK Switches JPM26B-B technical specifications.
General
Package/Case
125
Contact Current Rating
10A
Contact Plating
Silver
Current Rating
10A
Electrical Life
25000Cycles
Flammability Rating
UL94 V-0
Lead Free
Contains Lead
Max Operating Temperature
70°C
Mechanical Life
25000Cycles
Min Operating Temperature
-10°C
Mount
Snap in, Panel
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
JP
Switch Function
Off-On
Termination
Solder
Throw Configuration
DPDT, DPST
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
NKK Switches JPM26B-B Datasheet
Download the complete datasheet for NKK Switches JPM26B-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

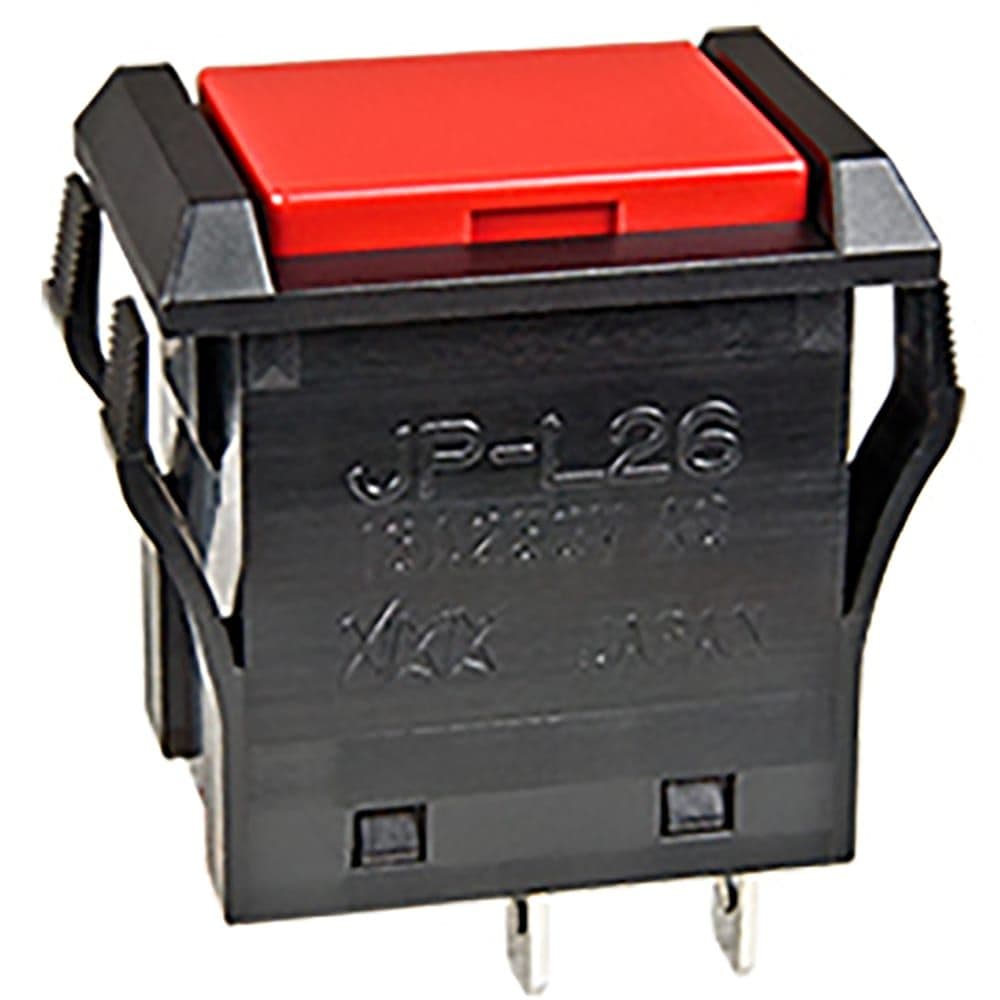

Product Images
