NKK Switches
JS0204AP4-S
Switch DIP OFF ON SPST 4 Raised Slide 0.025A 24VDC Gull Wing 2000Cycles 2.54mm SMD Stick/Tube
Current Rating25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NKK Switches JS0204AP4-S technical specifications.
General
| Actuator Type | Slide (Standard) |
| Body Material | Nylon, Glass, Polyamide |
| Contact Material | Copper |
| Contact Plating | Gold |
| Current Rating | 25mA |
| Electrical Life | 2000Cycles |
| Lead/Base Style | Gull Wing |
| Length | 0.437inch |
| Max Operating Temperature | 70°C |
| Mechanical Life | 2000Cycles |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Positions | 4 |
| Number of Switches | 4 |
| Package Quantity | 46 |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| RoHS Compliant | Yes |
| Series | JS |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| DC Rated Voltage | 24V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches JS0204AP4-S Datasheet
Download the complete datasheet for NKK Switches JS0204AP4-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

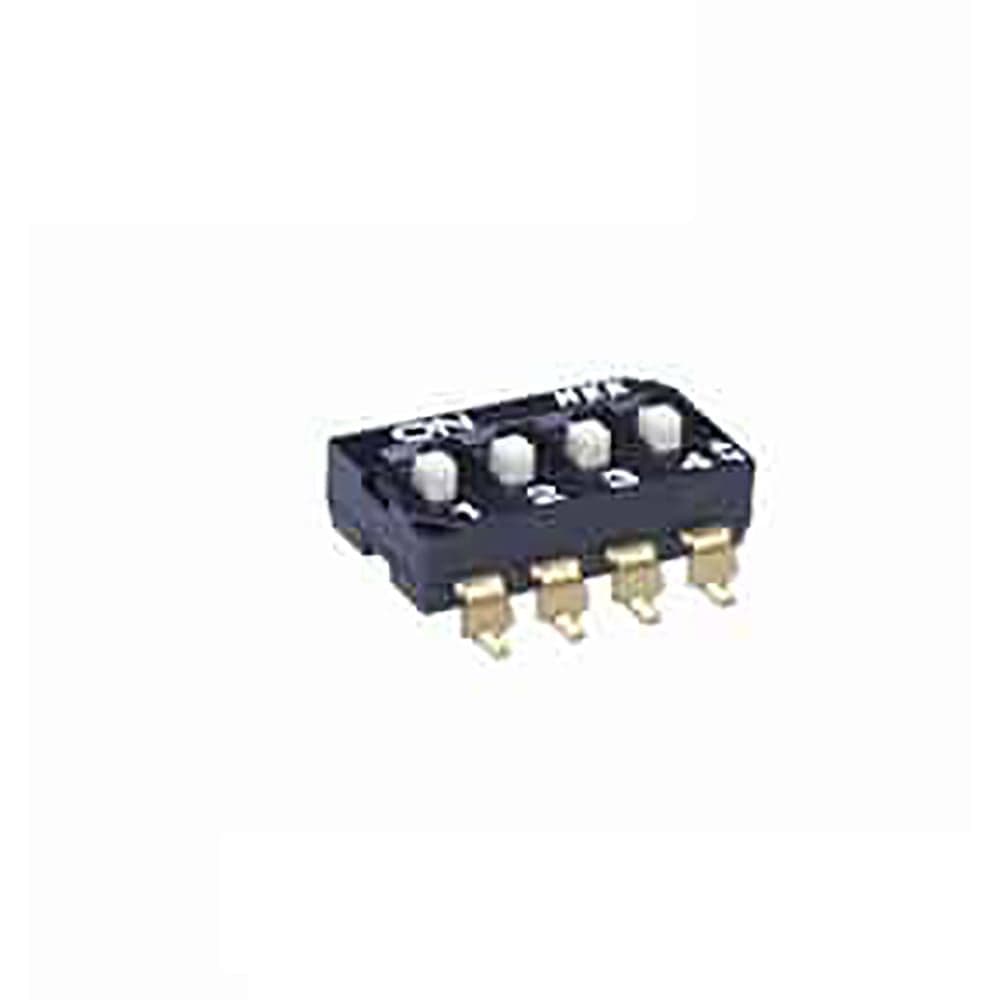

Product Images
