NKK Switches
KB15CKG01-5D24-JD
Switch Push Button ON (ON) SPDT Round Button 0.1A 28VAC 28VDC 0.4VA Momentary Contact Panel Mount Solder Lug
MountingPanel, Front
Quick Jump:
Technical Specifications
NKK Switches KB15CKG01-5D24-JD technical specifications.
General
Actuator Type
Round, Button
Contact Plating
Gold
Electrical Life
100000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Orange, Red
Illumination Type
LED
Lead Free
Lead Free
Life (Hours)
100000Hour
Max Operating Temperature
50°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
KB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches KB15CKG01-5D24-JD Datasheet
Download the complete datasheet for NKK Switches KB15CKG01-5D24-JD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

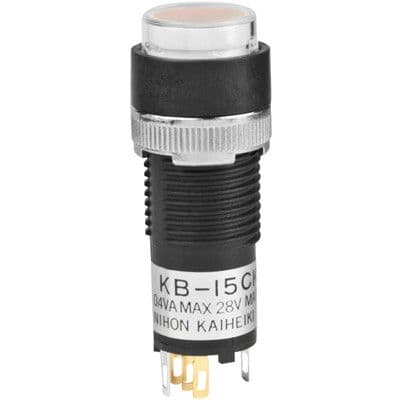

Product Images
