Illuminated pushbutton switch featuring SPDT (Single Pole Double Throw) momentary contact. Rated for 1A at 250VAC and 30VDC, with a contact current rating of 3A. Offers a mechanical life of 100,000 cycles and an electrical life of 50,000 cycles. Panel mountable with solder lug termination, it operates vertically and is RoHS compliant.
Current Rating1A
MountingPanel, Front
Quick Jump:
Technical Specifications
NKK Switches KB15CKW01 technical specifications.
General
Approvals
UL, CSA
Color
Black
Contact Current Rating
3A
Contact Material
Silver, Copper
Contact Plating
Silver, Gold
Current Rating
1A
Depth
14mm
Electrical Life
50000Cycles
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Length
14mm
Max Current Rating
1A
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
100000Cycles
Mount
Panel, Front
Number of Poles
1
Number of Positions
2
Orientation
Vertical
Package Quantity
1
Packaging
Tray
Primary Type
SWITCH
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
KB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT, SP
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches KB15CKW01 Datasheet
Download the complete datasheet for NKK Switches KB15CKW01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

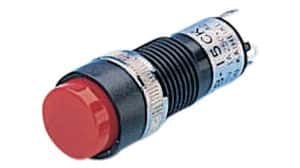

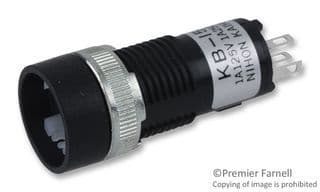

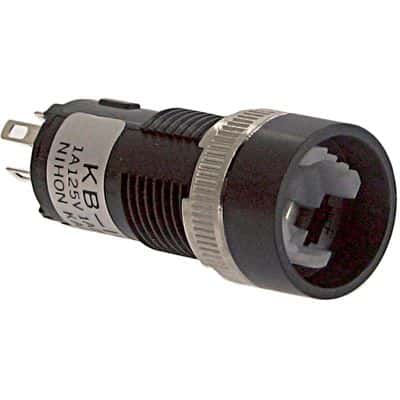

Product Images
