NKK Switches
KB15CKW01-CC
Switch Push Button ON (ON) SPDT Round Button 1A 250VAC 30VDC Momentary Contact Panel Mount Solder Lug
Current Rating1A
MountingPanel, Front
Quick Jump:
Technical Specifications
NKK Switches KB15CKW01-CC technical specifications.
General
Actuator Type
Round, Button
Contact Current Rating
3A
Contact Plating
Silver
Current Rating
1A
Electrical Life
50000Cycles
Flammability Rating
UL94 V-0
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Panel, Front
Orientation
Vertical
Package Quantity
1
Packaging
Tray
RoHS Compliant
Yes
Series
KB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches KB15CKW01-CC Datasheet
Download the complete datasheet for NKK Switches KB15CKW01-CC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

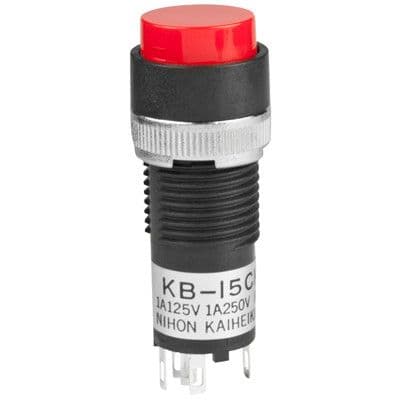

Product Images
