NKK Switches
KB16RKG01-12-CC
Switch Push Button ON ON SPDT Rectangular Button 0.1A 28VAC 28VDC 0.4VA Alternate Contact Panel Mount Solder Lug
Current Rating1A
MountingSnap in, Panel, Front
Quick Jump:
Technical Specifications
NKK Switches KB16RKG01-12-CC technical specifications.
General
Contact Plating
Gold
Current Rating
1A
Electrical Life
100000Cycles
Flammability Rating
UL94 V-0
Max Operating Temperature
50°C
Mechanical Life
100000Cycles
Min Operating Temperature
-25°C
Mount
Snap in, Panel, Front
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KB
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
NKK Switches KB16RKG01-12-CC Datasheet
Download the complete datasheet for NKK Switches KB16RKG01-12-CC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

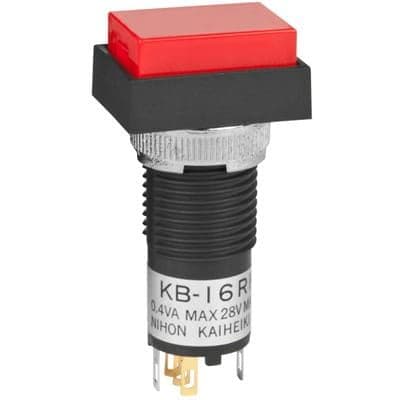

Product Images
