NKK Switches
KB16RKW01-CC
Switch Push Button ON ON SPDT Rectangular Button 1A 250VAC 30VDC Alternate Contact Panel Mount Solder Lug
Current Rating1A
MountingPanel, Front
Quick Jump:
Technical Specifications
NKK Switches KB16RKW01-CC technical specifications.
General
| Contact Plating | Silver |
| Current Rating | 1A |
| Electrical Life | 50000Cycles |
| Flammability Rating | UL94 V-0 |
| Max Operating Temperature | 70°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Panel, Front |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | KB |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches KB16RKW01-CC Datasheet
Download the complete datasheet for NKK Switches KB16RKW01-CC to view detailed technical specifications.
No datasheet is available for this part.

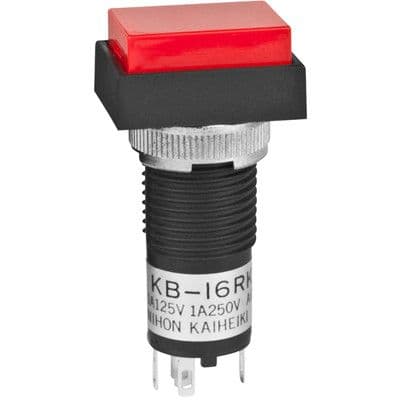

Product Images
