LB15CKW01-C
Illuminated Pushbutton Switch SPDT 3A 250VAC 30VDC Momentary Quick Connect/Solder
Illuminated pushbutton switch featuring a momentary ON (ON) SPDT contact configuration. Rated for 3A at 250VAC and 30VDC, with a silver contact material and plating. Offers a quick connect/solder lug termination and panel mount capability. Designed for a mechanical life of 1,000,000 cycles and an electrical life of 100,000 cycles. Operating temperature range is -25°C to 70°C, with a UL94 V-0 flammability rating.
Current Rating3A
MountingSnap in, Panel
Quick Jump:
Technical Specifications
NKK Switches LB15CKW01-C technical specifications.
General
Actuator Type
Round, Button
Contact Current Rating
3A
Contact Material
Silver
Contact Plating
Silver
Current Rating
3A
Depth
23.7mm
Electrical Life
100000Cycles
Flammability Rating
UL94 V-0
Lead Free
Contains Lead
Length
23.7mm
Max Current Rating
3A
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mount
Snap in, Panel
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Primary Type
SWITCH
RoHS Compliant
Yes
Series
LB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches LB15CKW01-C Datasheet
Download the complete datasheet for NKK Switches LB15CKW01-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

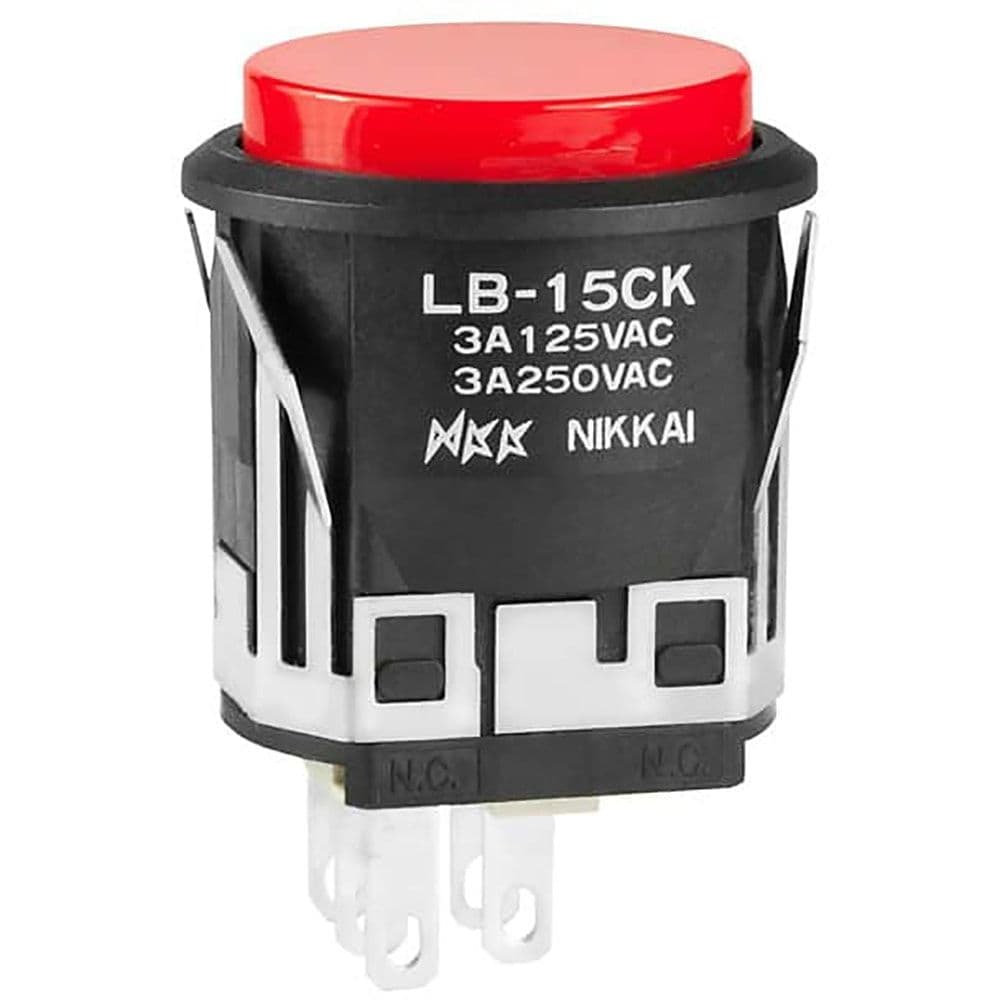

Product Images
