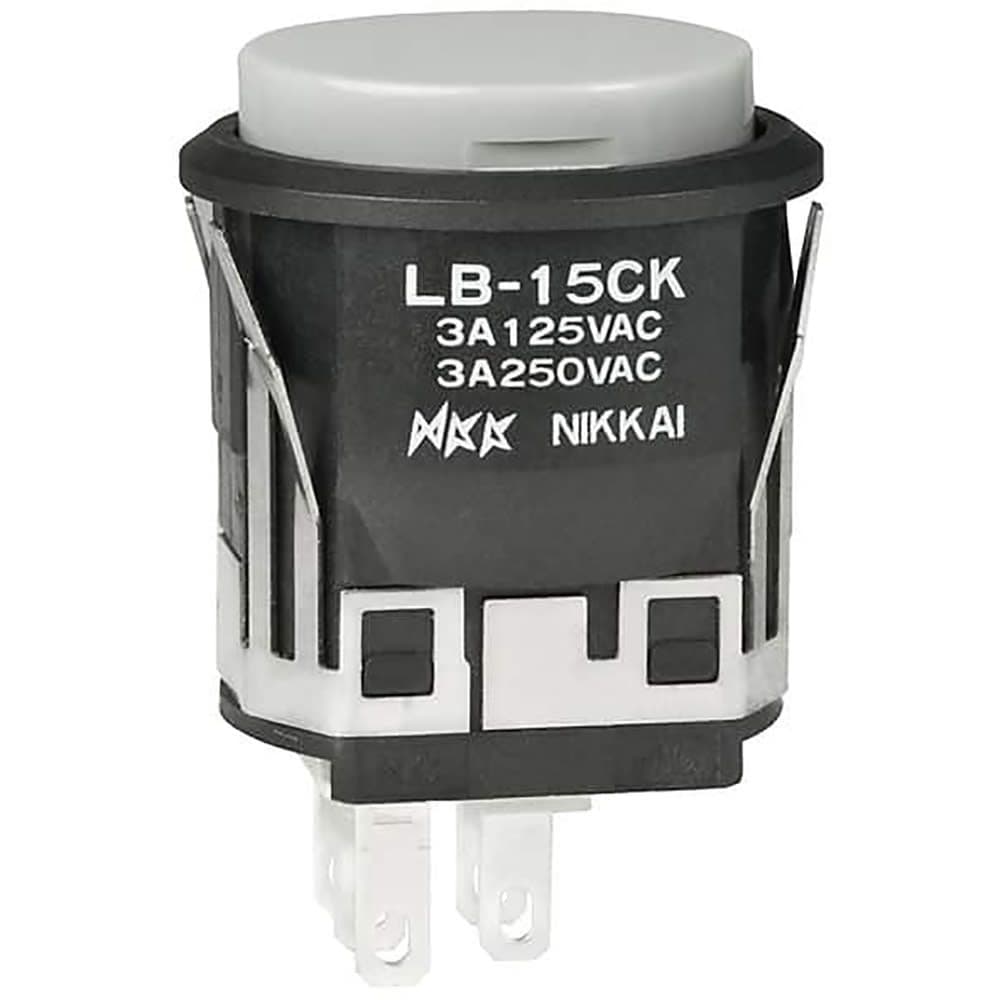

LB15CKW01-H

SPDT Illuminated Pushbutton Switch, 3A 250VAC 30VDC, Momentary, Solder/Quick Connect

SPDT momentary pushbutton switch with a round button actuator. Features silver contacts and plating, rated for 3A at 250VAC/30VDC. Offers 100,000 electrical cycles and 1,000,000 mechanical cycles. Panel mountable with snap-in and solder lug termination. Operates between -25°C and 70°C, with UL94 V-0 flammability rating.

Current Rating3A

MountingSnap in, Panel

Quick Jump:

Technical Specifications

NKK Switches LB15CKW01-H technical specifications.

General

Actuator Type	Round, Button
Contact Material	Silver
Contact Plating	Silver
Current Rating	3A
Depth	23.7mm
Electrical Life	100000Cycles
Flammability Rating	UL94 V-0
Length	23.7mm
Max Current Rating	3A
Max Operating Temperature	70°C
Min Operating Temperature	-25°C
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	30V
Mechanical Life	1000000Cycles
Mount	Snap in, Panel
Package Quantity	1
Packaging	Bulk
RoHS Compliant	Yes
Series	LB
Switch Function	On-Mom
Termination	Solder
Throw Configuration	SPDT
Voltage Rating (AC)	125V
DC Rated Voltage	30V
