NKK Switches

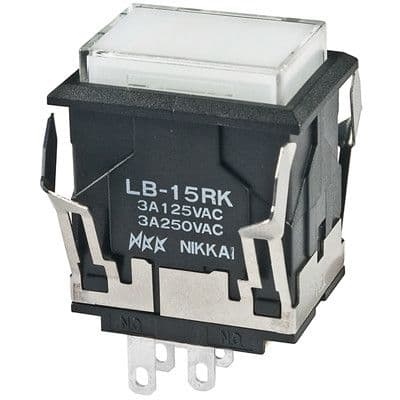

LB15RKW01-5F05-JB
Switch Push Button ON (ON) SPDT Rectangular Button 3A 250VAC 30VDC Momentary Contact Panel Mount Quick Connect/Solder Lug
Current Rating3A
MountingSnap in, Panel
Quick Jump:
Technical Specifications
NKK Switches LB15RKW01-5F05-JB technical specifications.
General
Contact Current Rating
3A
Contact Plating
Gold
Current Rating
3A
Electrical Life
100000Cycles
Flammability Rating
UL94 V-0
Illumination Color
Green
Illumination Type
LED
Max Operating Temperature
50°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Mount
Snap in, Panel
Packaging
Bulk
RoHS Compliant
Yes
Series
LB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches LB15RKW01-5F05-JB Datasheet
Download the complete datasheet for NKK Switches LB15RKW01-5F05-JB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
