NKK Switches

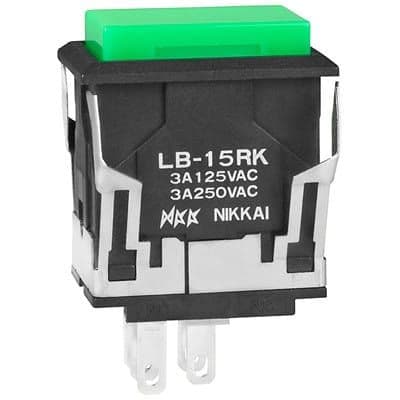

LB15RKW01-F
Switch Push Button ON (ON) SPDT Rectangular Button 3A 250VAC 30VDC Momentary Contact Panel Mount Quick Connect/Solder Lug
Current Rating3A
MountingSnap in, Panel
Quick Jump:
Technical Specifications
NKK Switches LB15RKW01-F technical specifications.
General
Contact Plating
Silver
Current Rating
3A
Electrical Life
100000Cycles
Flammability Rating
UL94 V-0
Lead Free
Contains Lead
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Mount
Snap in, Panel
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
LB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
NKK Switches LB15RKW01-F Datasheet
Download the complete datasheet for NKK Switches LB15RKW01-F to view detailed technical specifications.
