SPDT toggle switch featuring a small flat lever with PC pins for PC mounting. Rated for 6A at 250VAC and 30VDC, with a silver contact material and plating. Offers an electrical life of 25,000 cycles and operates within a temperature range of -30°C to 85°C. The brass, chrome-plated actuator measures 11.4mm, and the switch has a UL94 V-0 flammability rating.
Current Rating6A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches M2012ES1W03 technical specifications.
General
Actuator Length
11.4mm
Actuator Material
Brass, Chrome
Color
Multiple
Contact Material
Silver
Contact Plating
Silver
Current Rating
6A
Depth
8mm
Electrical Life
25000Cycles
Flammability Rating
UL94 V-0
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
13mm
Life (Hours)
25000Hour
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mount
Panel
Orientation
Vertical
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M
Switch Function
On-On
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Width
7.9mm
Compliance
RoHS
Compliant
Datasheet
NKK Switches M2012ES1W03 Datasheet
Download the complete datasheet for NKK Switches M2012ES1W03 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

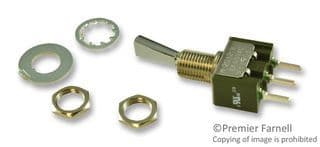

Product Images
