SPDT toggle switch with PC pin termination and a small bat lever actuator. Features a 6A max current rating at 250VAC and 30VDC, with a 4A continuous rating. Offers a mechanical life of 25,000 cycles and operates within a temperature range of -30°C to 85°C. Includes a bracket for vertical PC mounting.
Current Rating4A
MountingThrough Hole, Vertical
Quick Jump:
Technical Specifications
NKK Switches M2012S2A2W40 technical specifications.
General
Actuator Length
6.86mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Silver
Contact Plating
Silver
Current Rating
4A
Depth
34.9mm
Electrical Life
25000Cycles
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Contains Lead
Length
8mm
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mount
Through Hole, Vertical
Package Quantity
1
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
M
Switch Function
On-On
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Not Compliant
Datasheet
NKK Switches M2012S2A2W40 Datasheet
Download the complete datasheet for NKK Switches M2012S2A2W40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

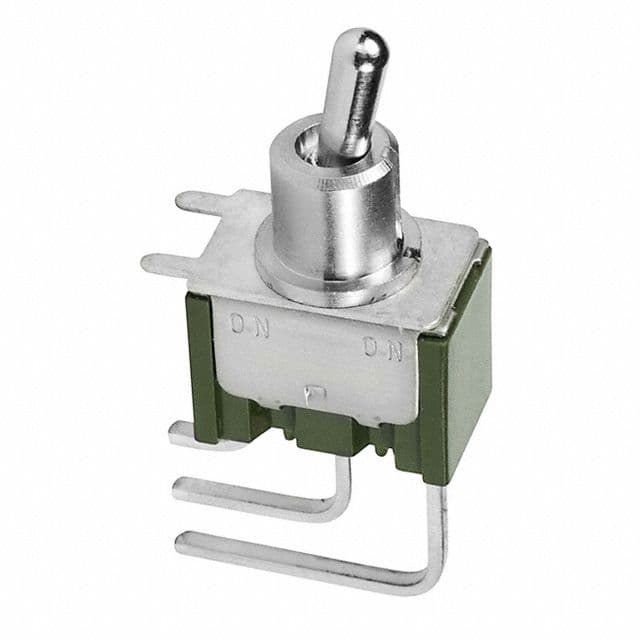

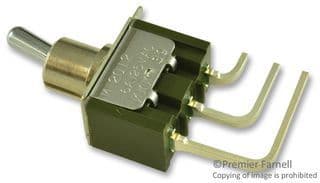

Product Images
