NKK Switches
M2012S3S2G03
Switch Toggle ON None ON SPDT Small Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount
Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches M2012S3S2G03 technical specifications.
General
Actuator Length
6.5mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Plating
Gold
Current Rating
100mA
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Through Hole
Package Quantity
1
RoHS Compliant
Yes
Series
M
Switch Function
On-On
Switching Voltage
28V
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
28V
DC Rated Voltage
28V
Compliance
RoHS
Not Compliant
Datasheet
NKK Switches M2012S3S2G03 Datasheet
Download the complete datasheet for NKK Switches M2012S3S2G03 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

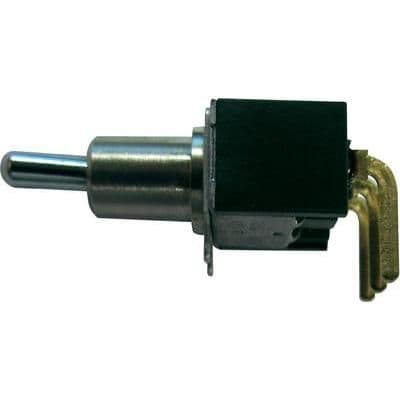

Product Images
