NKK Switches
M2018SS2W13
Switch Toggle (ON) OFF (ON) SPDT Small Bat Lever PC Pins 6A 250VAC 30VDC PC Mount with Bracket
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches M2018SS2W13 technical specifications.
General
| Actuator Length | 10.5mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Electrical Life | 25000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | M |
| Switch Function | Mom-Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
NKK Switches M2018SS2W13 Datasheet
Download the complete datasheet for NKK Switches M2018SS2W13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

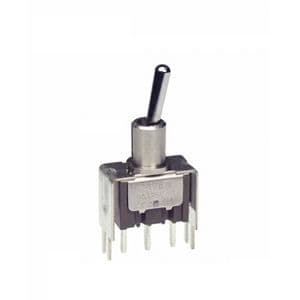

Product Images
