NKK Switches
M2024E2A2W23
Switch Toggle ON ON ON SP3T Small Flat Lever PC Pins 6A 250VAC 30VDC PC Mount with Bracket
MountingThrough Hole
Quick Jump:
Technical Specifications
NKK Switches M2024E2A2W23 technical specifications.
General
Actuator Length
6.5mm
Actuator Material
Brass, Chrome
Electrical Life
25000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Through Hole
Package Quantity
1
Packaging
Bulk
Series
M
Switch Function
On-On-On
Termination
PC Pin
Throw Configuration
SP3T
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Not Compliant
Datasheet
NKK Switches M2024E2A2W23 Datasheet
Download the complete datasheet for NKK Switches M2024E2A2W23 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

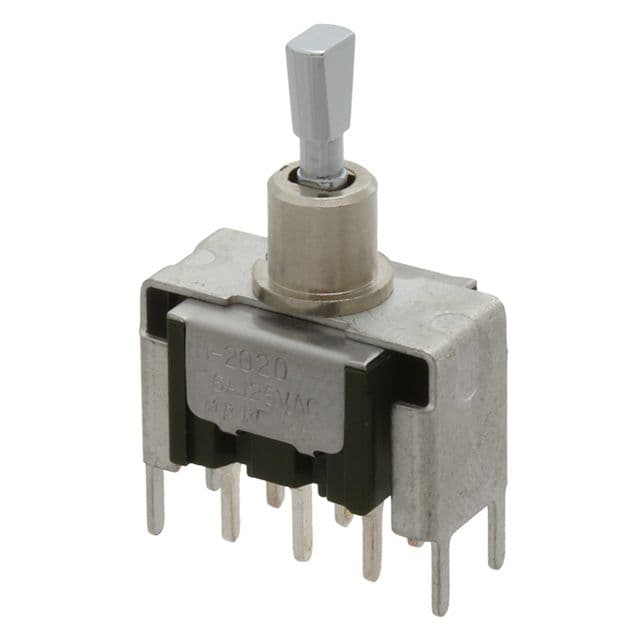

Product Images
